Rover 200 Workshop Manual (1995-1999)24 · Rear suspension
24 · Steering & suspension

’H’ frame - models with disc brakes (page 2 of 4)

Make
Rover
Model
200 Workshop Manual
Year
1995–1999
Section
Repairs
Rear suspension’H’ frame - models with disc brakes · page 2 of 4
Diagram

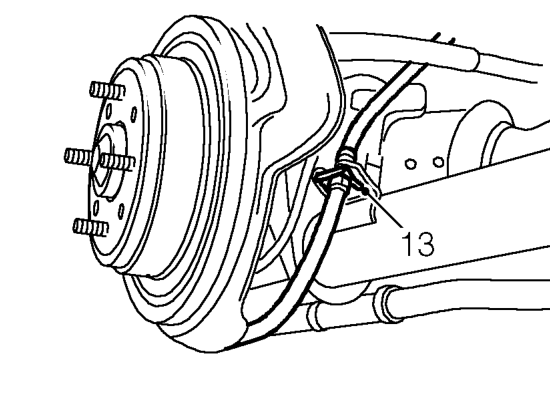

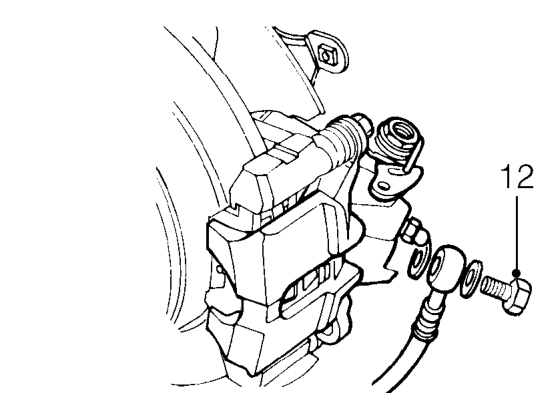

  1. Remove brake hose banjo bolts and discard sealing washers.

CAUTION: Plug the connections.

Remove brake hose banjo bolts and discard sealing washers.

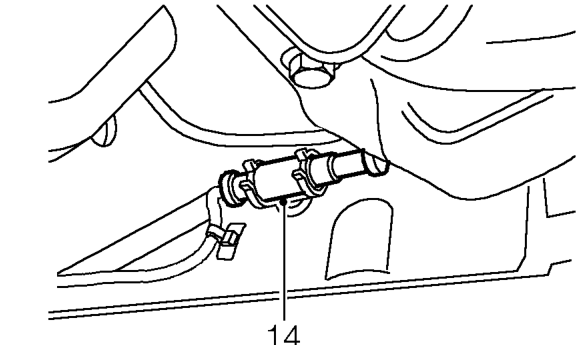

  1. Remove clips securing brake pipes to ’H’ frame and release pipes.
Remove clips securing brake pipes to ’H’ frame and release pipes.
  1. Release ABS sensor multiplugs from clips and disconnect.

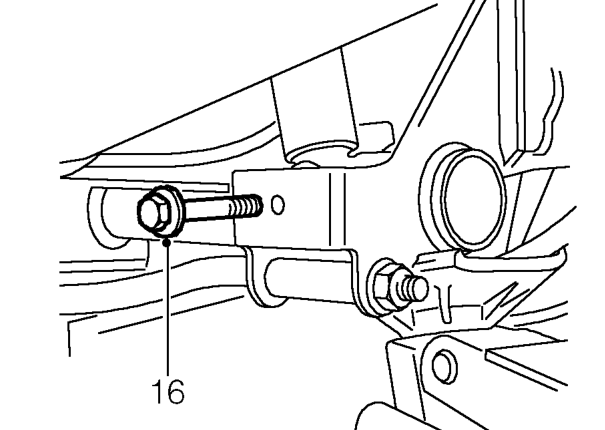

  2. Position trolley jack to support centre of ’H’ frame.
Position trolley jack to support centre of ’H’ frame.
  1. Remove 2 bolts securing both damper assemblies to ’H’ frame.
  2. Carefully lower trolley jack to disengage dampers from ’H’ frame.
