Rear hub and bearing - models with disc brakes

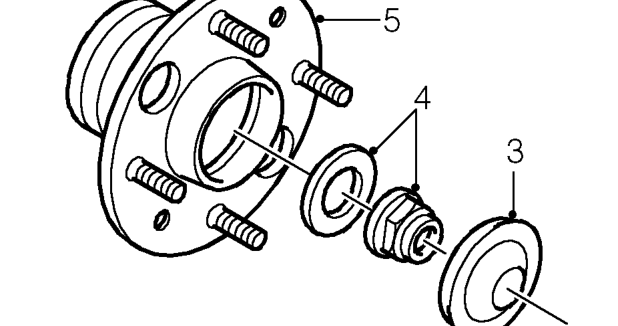

REAR HUB AND BEARING - MODELS WITH DISC BRAKES

Service repair no - 64.15.14

The rear hub and bearings are serviced as an assembly and cannot be individually renewed.

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove brake disc. See BRAKES, Repairs.

3. Remove dust cover from centre of hub.
4. Knock back staking and remove hub nut and washer. Discard nut.

NOTE: The nut threads are handed, i.e the hub nut on the LH side has a LH thread.

5. Remove hub assembly.

Refit

1. Clean hub and stub axle.
2. Lubricate seal running surface with grease.
3. Fit hub assembly.
4. Fit washer and new nut. Tighten nut to 180 Nm.
5. Stake the nut to stub axle and fit dust cover.
6. Fit brake disc. See BRAKES, Repairs.
7. Remove stand(s) and lower vehicle.
8. Apply foot brake several times and then check handbrake operation.

REAR HUB AND BEARING - MODELS WITH DRUM BRAKES WITHOUT ABS

Service repair no - 64.15.14

The rear hub and bearings are serviced as an assembly and cannot be individually renewed.

Remove

1. Raise rear of vehicle.

WARNING: Support on safety stands.

2. Remove brake drum. See BRAKES, Repairs.

3. Remove dust cover from centre of hub.
4. Knock back staking and remove hub nut and washer. Discard nut.

NOTE: The nut threads are handed, i.e the hub nut on the LH side has a LH thread.

5. Remove hub assembly.

Refit

1. Clean hub and stub axle.
2. Lubricate seal running surface with grease.
3. Fit hub assembly.
4. Fit washer and new nut. Tighten nut to 180 Nm.
5. Stake the nut to stub axle and fit dust cover.
6. Fit brake drum. See BRAKES, Repairs.
7. Remove stand(s) and lower vehicle.
8. Apply foot brake several times and then check handbrake operation.
