’H’ frame - models with drum brakes (page 4 of 5)
- Make
- Rover
- Model
- 200 Workshop Manual
- Year
- 1995–1999
- Section
- Repairs
Rear suspension’H’ frame - models with drum brakes · page 4 of 5

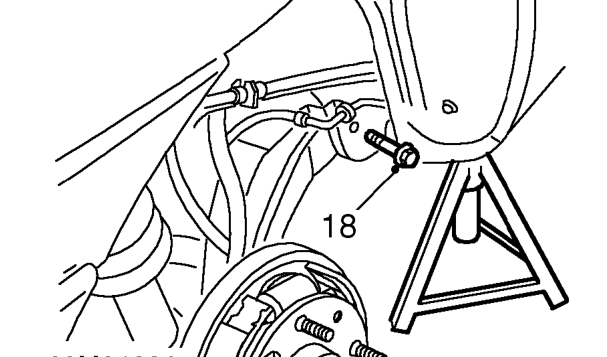

- With an assistant to support ’H’ frame, remove 2 pivot bolts securing ’H’ frame to body.
- With assistance, remove ’H’ frame from vehicle. Do not carry out further dismantling if component is removed for access only.

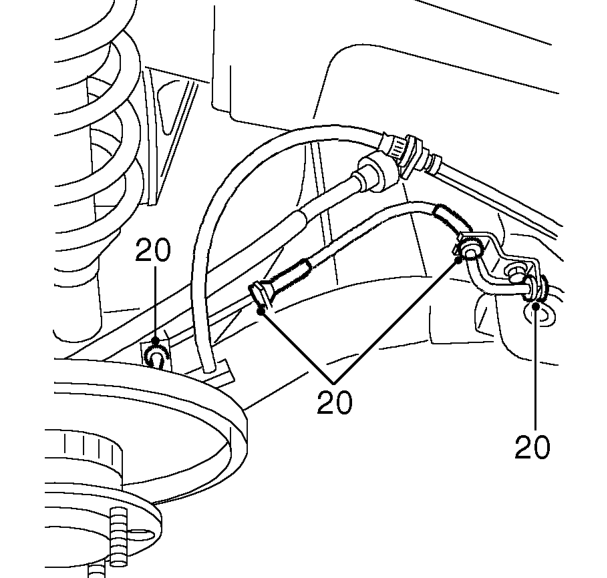

- Models with ABS: Release ABS sensor harnesses from ’H’ frame.
