Rear suspension’H’ frame - models with drum brakes · page 3 of 5
Diagram

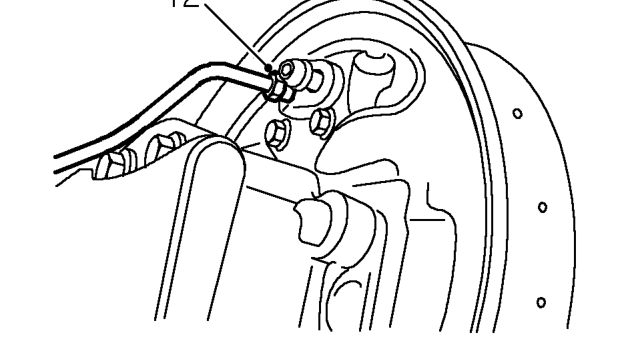

  1. Disconnect brake pipe unions from wheel cylinders.

CAUTION: Plug the connections.

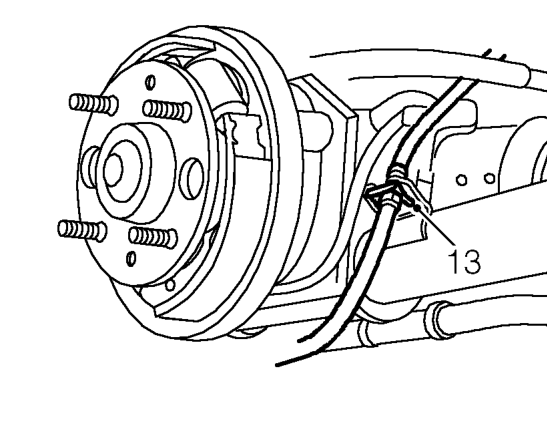

Disconnect brake pipe unions from wheel cylinders.

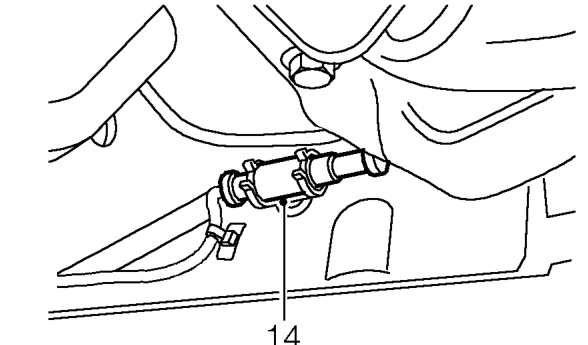

  1. Remove clips securing brake pipes to ’H’ frame and release pipes.
Remove clips securing brake pipes to ’H’ frame and release pipes.
  1. Models with ABS: Release ABS sensor multiplugs from clips. Disconnect multiplugs.
  2. Position trolley jack to support centre of ’H’ frame.

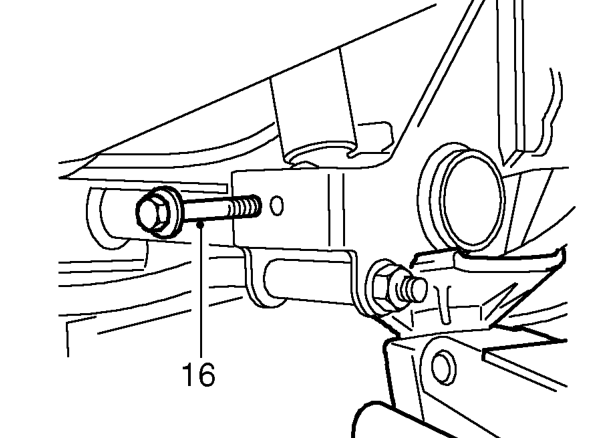

Position trolley jack to support centre of ’H’ frame.
  1. Remove 2 bolts securing both damper assemblies to ’H’ frame.
  2. Carefully lower trolley jack to disengage dampers from ’H’ frame.
