Rover 400 Workshop Manual Supplement (1999)04 · Engine - K Series
04 · Engine

Engine and gearbox (page 2 of 10)

Make
Rover
Model
400 Workshop Manual Supplement
Year
1999
Section
Repairs
Engine - K SeriesEngine and gearbox · page 2 of 10
Diagram

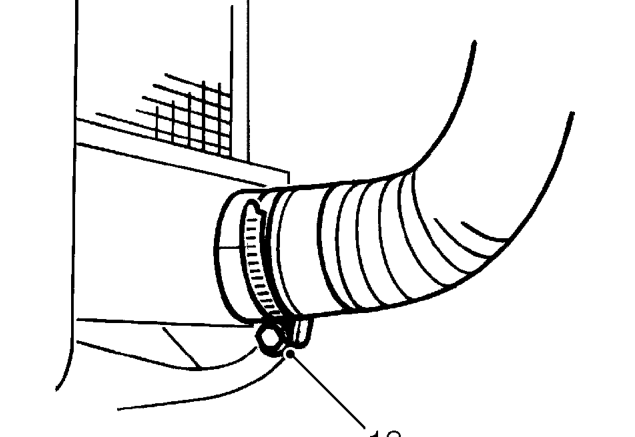

  1. Position container under radiator, loosen clip and disconnect bottom hose from radiator.
  2. Allow cooling system to drain.
Allow cooling system to drain.

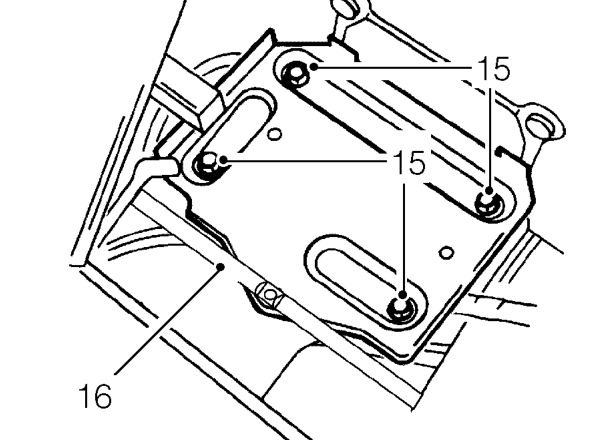

  1. Remove 4 bolts securing battery tray to mounting bracket.
  2. Remove battery tray.
Remove battery tray.

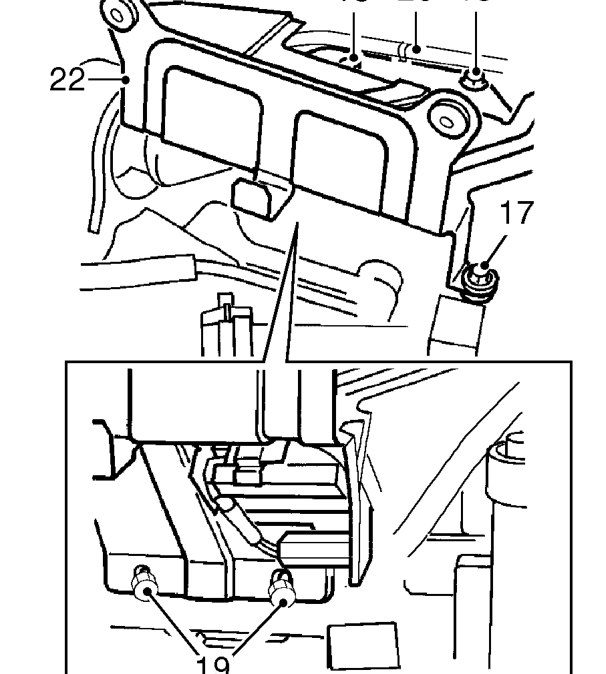

  1. Remove bolt securing air intake hose to battery tray mounting bracket.
  2. Remove 2 bolts securing battery tray mounting bracket to body.
  3. Loosen 2 bolts securing battery tray mounting bracket to body.
  4. Release clip securing harness to body.
  5. Position harness aside.
  6. Remove battery tray mounting bracket.
