Engine - K SeriesEngine and gearbox · page 8 of 10
Diagram

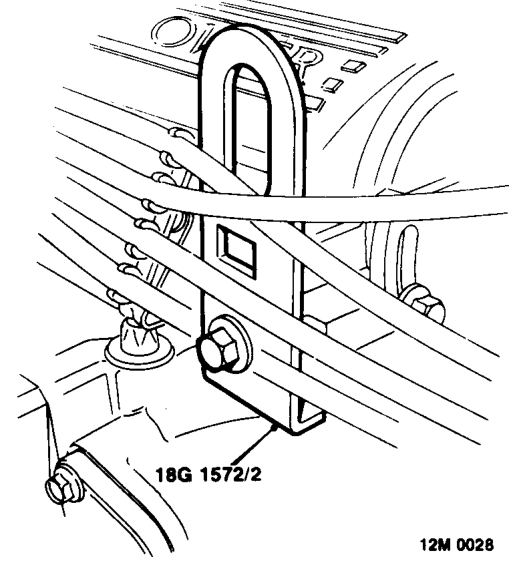

  1. Fit engine lifting bracket 18G 1572/2 to cylinder head. Fit bolt and tighten to 9 Nm.
Fit engine lifting bracket 18G 1572/2 to cylinder head. Fit bolt and tighten to 9 Nm.

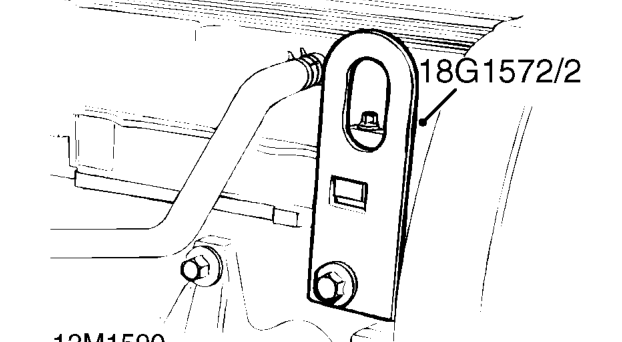

  1. Fit second engine lifting bracket 18G 1572/2 to cylinder head. Fit bolt and tighten to 9 Nm.
Fit second engine lifting bracket 18G 1572/2 to cylinder head. Fit bolt and tighten to 9 N

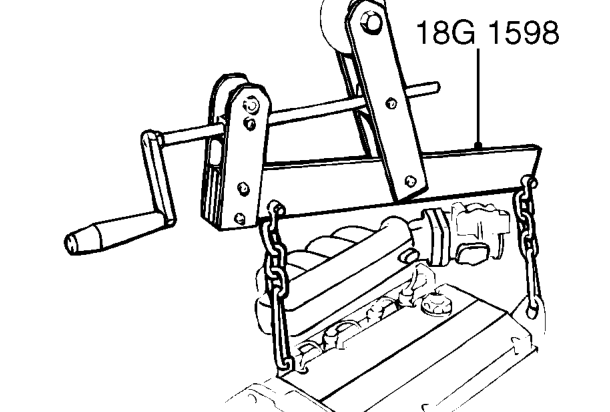

  1. Connect adjustable lifting bracket 18G 1598 to engine lifting brackets.
  2. Connect a hoist to lifting bracket 18G 1598 and raise hoist to take weight of engine without exerting load on engine mounting bolts.
Connect a hoist to lifting bracket 18G 1598 and raise hoist to take weight of engine witho

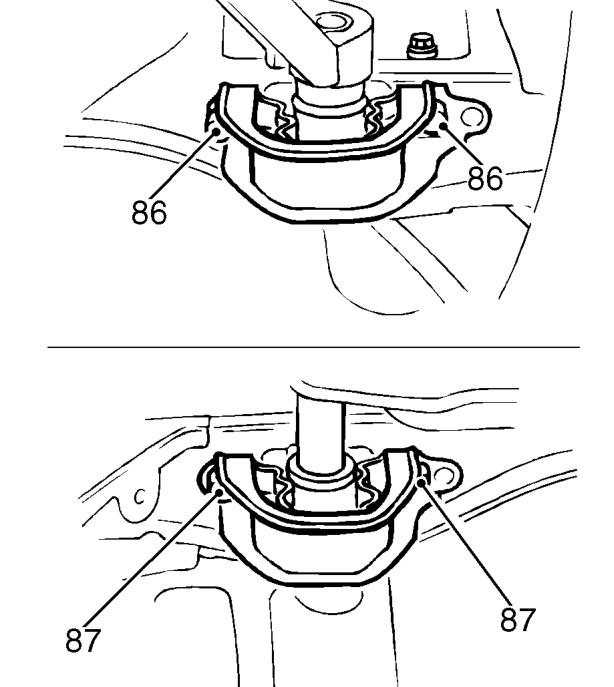

  1. Remove 2 bolts securing LH torque mounting to body.
  2. Remove 2 bolts securing RH torque mounting to body.
