Engine - K SeriesEngine and gearbox · page 7 of 10

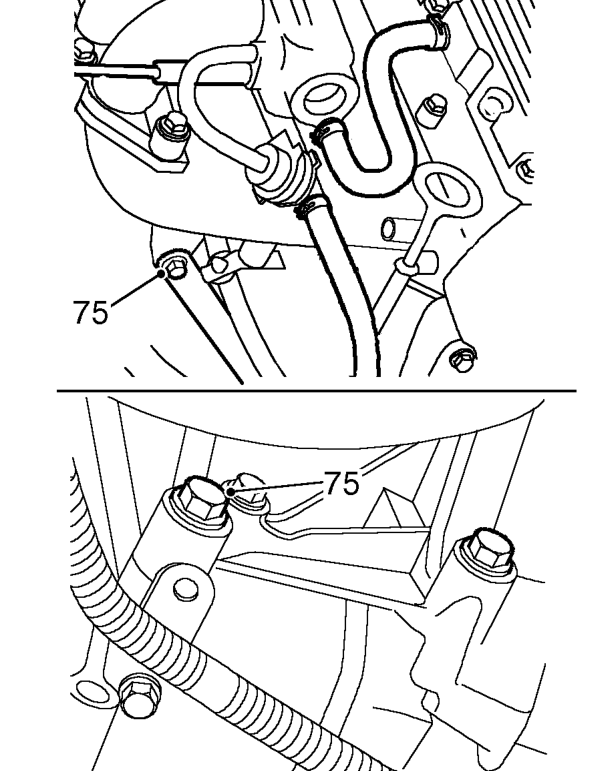

  1. Remove and discard ’O’ ring from fluid outlet hose.
  2. Plug hose and power steering pump connections to prevent excess fluid loss and the ingress of dirt and moisture into the system.
Plug hose and power steering pump connections to prevent excess fluid loss and the ingress

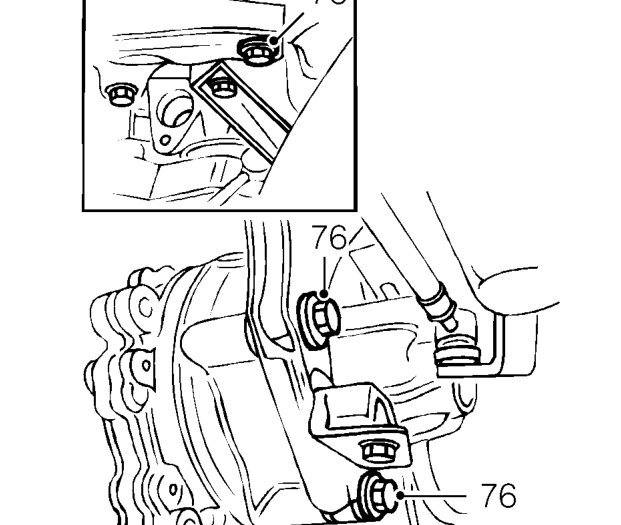

  1. Remove bolts securing engine steady bar to cylinder block and manifold.
Remove bolts securing engine steady bar to cylinder block and manifold.

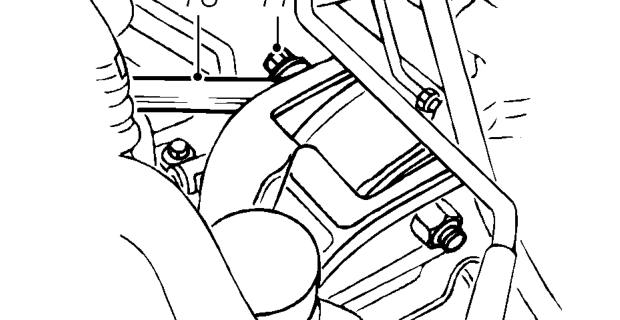

  1. Remove 3 bolts securing engine rear mounting to engine.
Remove 3 bolts securing engine rear mounting to engine.
  1. Remove through bolt securing engine rear mounting bracket to body.
  2. Remove engine steady bar.
  3. Using tool 18G 1592 release gear selector linkage ball joint from gear selector.
  4. Remove gear selector linkage.
  5. Remove engine rear mounting bracket.
