Engine and gearbox (page 5 of 10)

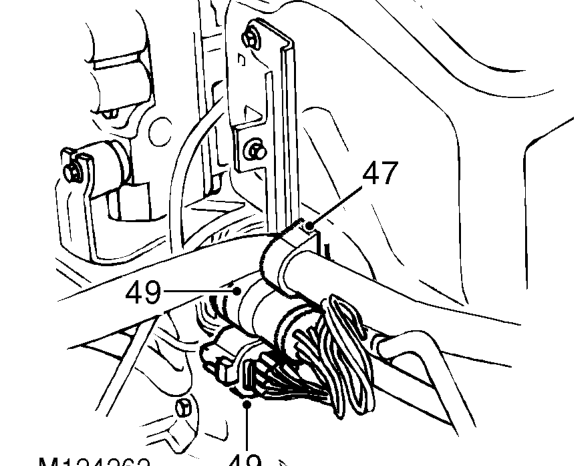

47. Release clip securing harness to mounting bracket.
48. Release clips securing multiplugs to mounting bracket.
49. Disconnect 2 engine harness multiplugs from main harness.
50. Lay engine harness across engine to avoid harness being caught when the engine is removed.

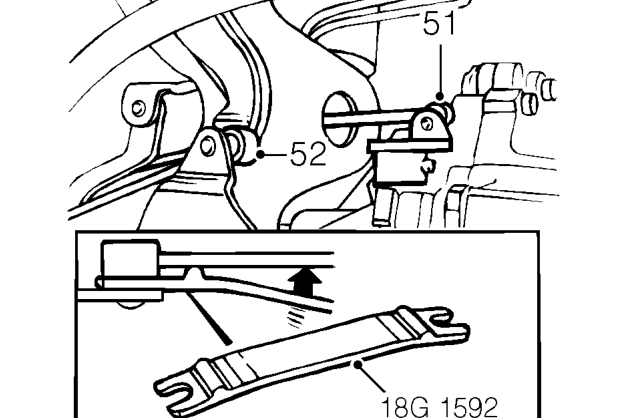

51. Using tool 18G 1592 release gear selector linkage ball joint from gear selector lever.
52. Using tool 18G 1592 release gear change linkage ball joint from gear change lever.

53. Position absorbent cloth around fuel filter outlet union.

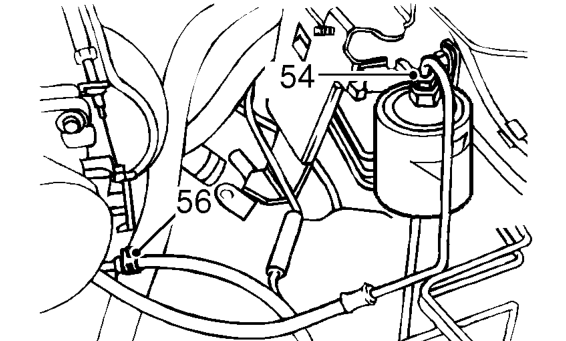

54. Loosen fuel filter outlet union to relieve fuel pressure.

CAUTION: To prevent damage to fuel system pipes and components use two spanners when loosening or tightening unions.

55. Disconnect fuel outlet pipe from fuel filter and position aside.
56. Release clip and disconnect hose from fuel return pipe.

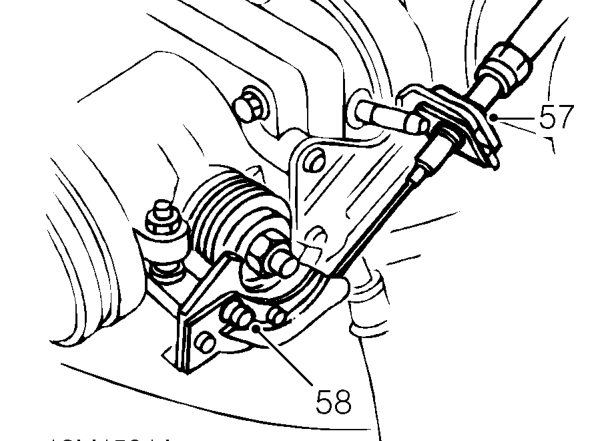

57. Release throttle cable adjusting nut from abutment bracket.
58. Release throttle cable from throttle cam.
