Engine - K SeriesEngine and gearbox · page 4 of 10

34. Remove engine control module. See WORKSHOP MANUAL - ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.

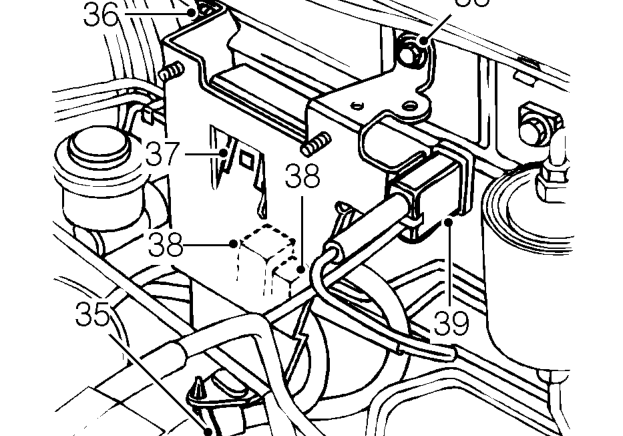

35. Release clip securing harness to engine control module mounting bracket.
36. Remove 2 bolts securing engine control module mounting bracket to body.
37. Release clip securing relay module to mounting bracket.
38. Disconnect 2 multiplugs from relay module and remove relay module.
39. Release fuel trap from mounting bracket.

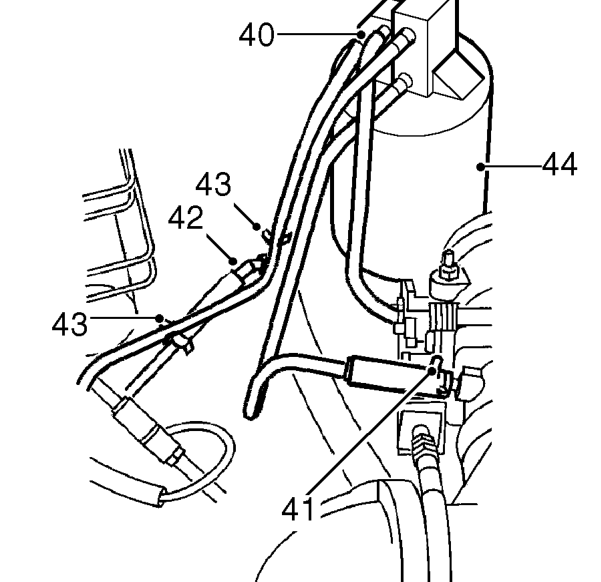

40. Disconnect multiplug from evaporative emission canister purge valve.
41. Release clip and disconnect purge hose from throttle housing.
42. Disconnect hose from fuel tank vent pipe.
43. Release 2 clips securing evaporative emission canister breather hose to fuel pipe.
44. Loosen clamp bolt and remove evaporative emission canister.

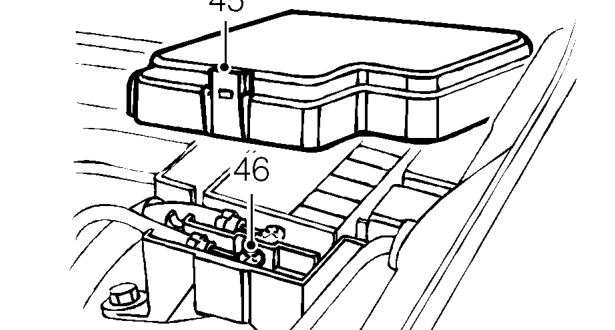

45. Release clip and remove engine compartment fusebox cover.
46. Remove screw and disconnect positive lead from fusebox.
