POWER STEERING PUMP - ’D’ SERIES UP TO 97.5 MY

Service repair no - 57.20.14

Remove

  1. Remove power steering pump drive belt. See this section.
  2. Position container beneath steering pump.

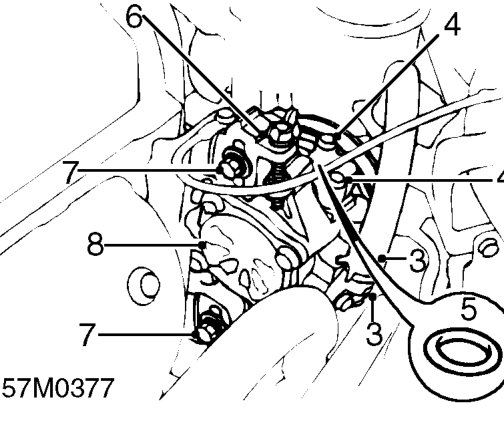

Power steering pump - ’d’ series up to 97.5 my – Position container beneath steering pump.
  1. Release clip and disconnect return suction hose from pump.

CAUTION: Plug the connections.

  1. Remove 2 bolts securing feed pipe adaptor.
  2. Disconnect feed pipe adaptor from pump and discard ’O’ ring.
  3. Turn adjusting bolt anti-clockwise and remove from bracket.
  4. Remove 2 bolts securing pump to mounting bracket.
  5. Remove steering pump.

Do not carry out further dismantling if component is removed for access only.

  1. Drain fluid from pump.
  2. Hold pump in soft jawed vice.

CAUTION: Take care not to damage pump housing.

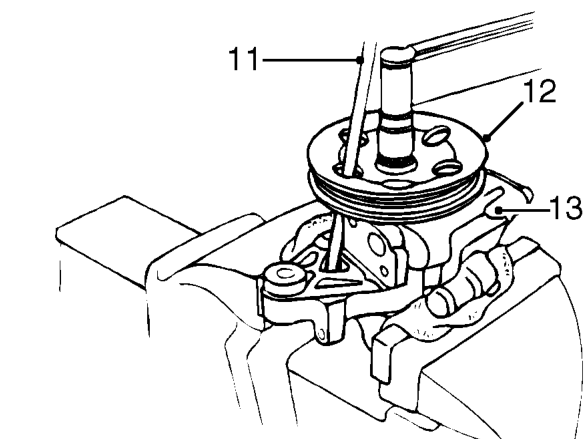

Power steering pump - ’d’ series up to 97.5 my – Hold pump in soft jawed vice.
  1. Use an extension bar to hold pulley against rotation and remove pulley nut which has a LH THREAD.
  2. Remove pulley.
  3. Remove steering pump.
