POWER STEERING RACK - ’L’ AND ’T’ SERIES

Service repair no - 57.10.01

Remove

Power steering rack - ’l’ and ’t’ series – Service repair no - 57.10.01

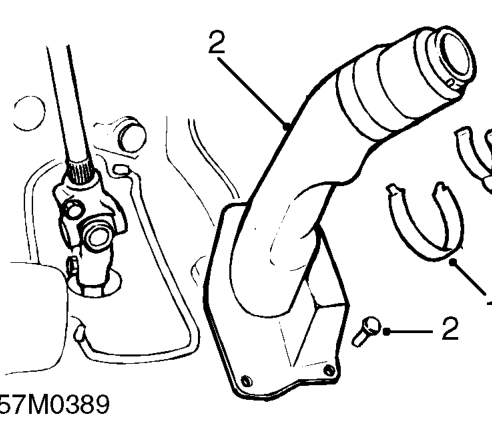

  1. Remove 2 clips securing column universal joint cover.
  2. Pull back driver’s footwell carpet and remove 2 studs securing cover to floor. Remove cover.
  3. Align road wheels to straight ahead position and remove starter key to lock steering column.
Power steering rack - ’l’ and ’t’ series – Align road wheels to straight ahead position and remove starter key to lock steering colum

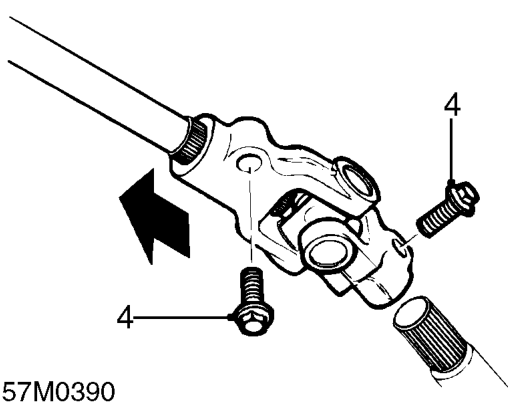

  1. Remove 2 bolts securing column universal joint, slide joint up column and disconnect from steering rack pinion shaft.
Power steering rack - ’l’ and ’t’ series – Remove 2 bolts securing column universal joint, slide joint up column and disconnect from

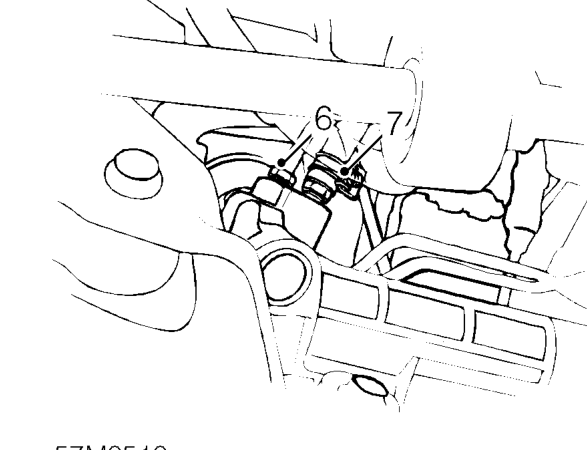

  1. Position container beneath steering rack.
  2. Disconnect feed and return pipe unions from steering rack.
  3. Release clip and disconnect return hose from steering rack.

CAUTION: Plug the connections.

  1. Remove exhaust front pipe. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  2. Remove road wheel(s).
Power steering rack - ’l’ and ’t’ series – Remove road wheel(s).

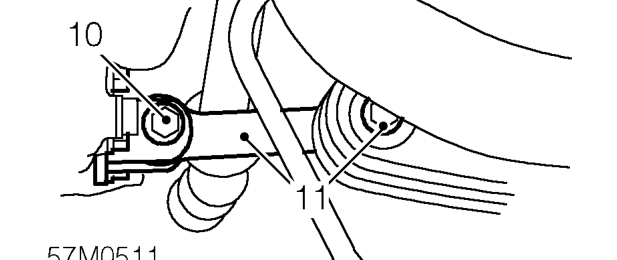

  1. Loosen through bolt securing engine lower steady bar to subframe.
  2. Remove through bolt securing steady bar to bracket on sump and allow steady bar to hang.
