Steering wheel - ’t’ series

STEERING WHEEL - ’T’ SERIES

Service repair no - 57.60.01

Remove

1. Remove cruise control set/resume switch. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
2. Centralise steering wheel with road wheels in straight ahead position.
3. Restrain steering wheel and loosen self-locking nut securing steering wheel to column. Loosen 2 turns only.

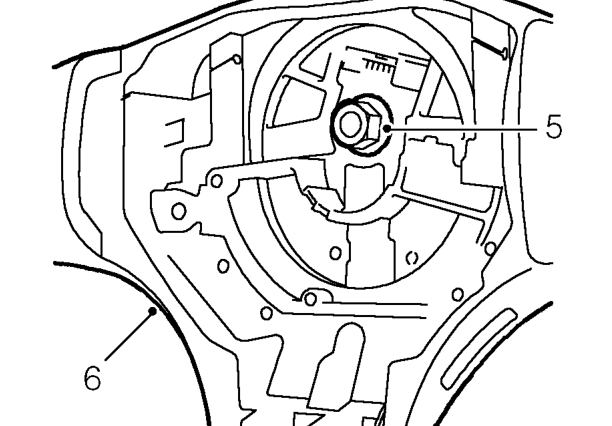

4. Release steering wheel from column splines by rocking steering wheel from side-to-side and pulling with both hands.

5. Remove and discard self-locking nut.
6. Remove steering wheel.
7. Attach tape across edge of rotary coupling to retain in central setting.

Refit

1. Remove retaining tape from rotary coupling.
2. Ensure road wheels are in straight ahead position and indicator cancel cam aligned vertical.
3. Engage rotary coupling and fit steering wheel to column, ensure wheel spokes are horizontal.
4. Fit NEW self-locking nut, tighten to 49 Nm.
5. Fit cruise control set/resume switch. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
