POWER STEERING RACK - ’K’ SERIES

Service repair no - 57.10.01

Remove

Power steering rack - ’k’ series – Service repair no - 57.10.01

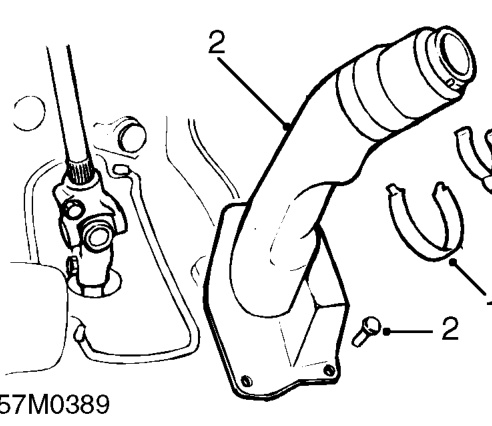

  1. Remove 2 clips securing column universal joint cover.
  2. Pull back driver’s footwell carpet and remove 2 studs securing cover to floor. Remove cover.
  3. Align road wheels to straight ahead position and remove starter key to lock the steering wheel.
Power steering rack - ’k’ series – Align road wheels to straight ahead position and remove starter key to lock the steering w

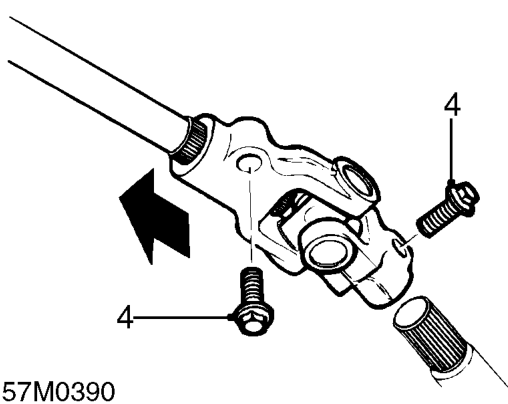

  1. Remove 2 bolts securing column universal joint, slide joint up column and disconnect from steering rack pinion shaft.
Power steering rack - ’k’ series – Remove 2 bolts securing column universal joint, slide joint up column and disconnect from

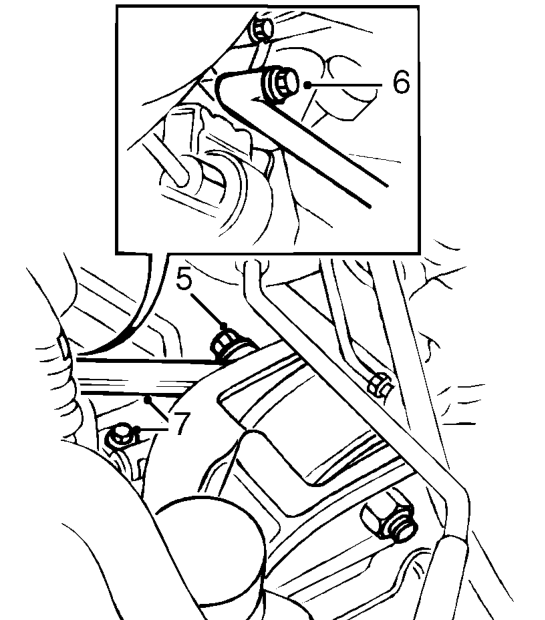

  1. Loosen engine rear steady rod through bolt.
  2. Remove bolt securing engine steady rod to cylinder block.
  3. Move engine steady rod aside and remove bolt securing PAS pipe clip.
  4. Position container beneath steering rack.
Power steering rack - ’k’ series – Position container beneath steering rack.

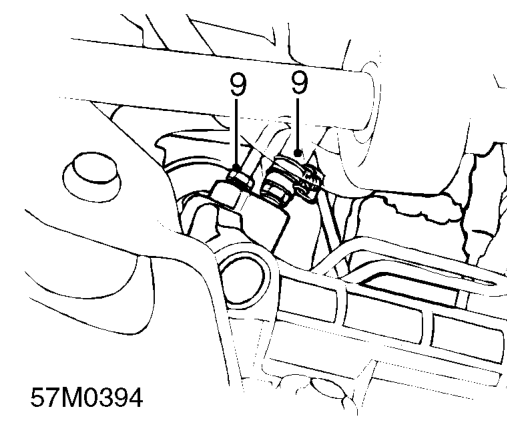

  1. Disconnect feed and return pipe unions from steering rack.

CAUTION: Plug the connections.
