POWER STEERING PUMP - ’L’ SERIES

Service repair no - 57.20.14

Remove

Power steering pump - ’l’ series – Service repair no - 57.20.14

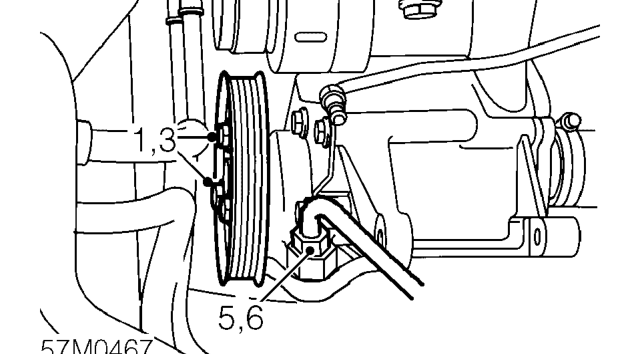

  1. Slacken 3 Tx30 Torx screws securing pulley to pump.
  2. Remove auxiliary drive belt. See ELECTRICAL, Repairs.
  3. Remove 3 Torx screws securing pulley to pump and remove pulley.
  4. Position container to collect fluid loss from power steering system.
  5. Loosen union securing high pressure hose to power steering pump.

CAUTION: To prevent damage to components, use two spanners when loosening or tightening unions.

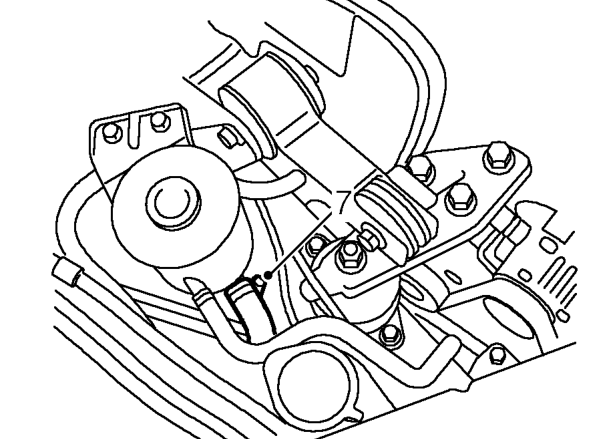

  1. Disconnect high pressure hose from pump, remove and discard ’O’ ring.
Power steering pump - ’l’ series – Disconnect high pressure hose from pump, remove and discard ’O’ ring.
  1. Release clip and disconnect power steering pump feed hose from fluid reservoir.

CAUTION: Plug the connections.

Power steering pump - ’l’ series – Release clip and disconnect power steering pump feed hose from fluid reservoir.

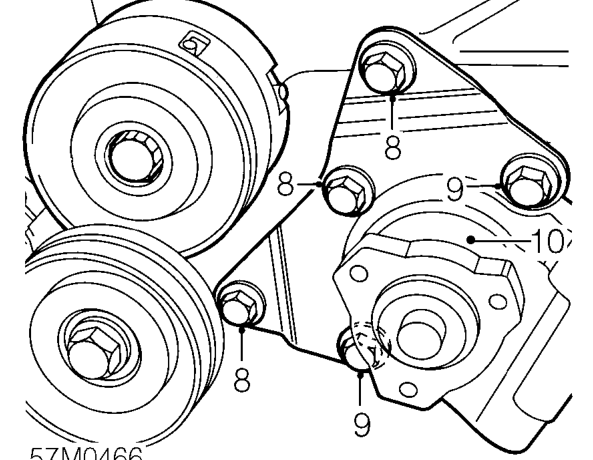

  1. Remove 3 short bolts securing support bracket to power steering pump and coolant pump housing.
  2. Remove 2 long bolts securing power steering pump to coolant pump.
  3. Remove power steering pump.
  4. Release clip and remove hose from pump.
