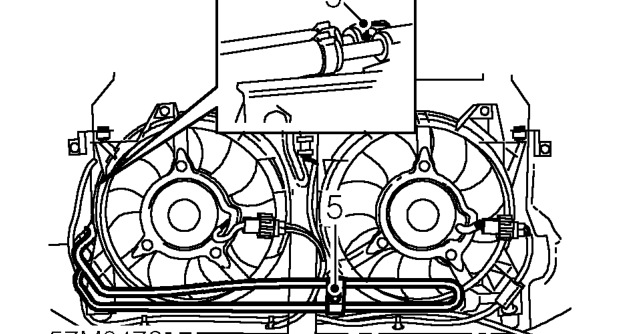

5. Remove 2 bolts securing fluid cooler to valance and front panel.

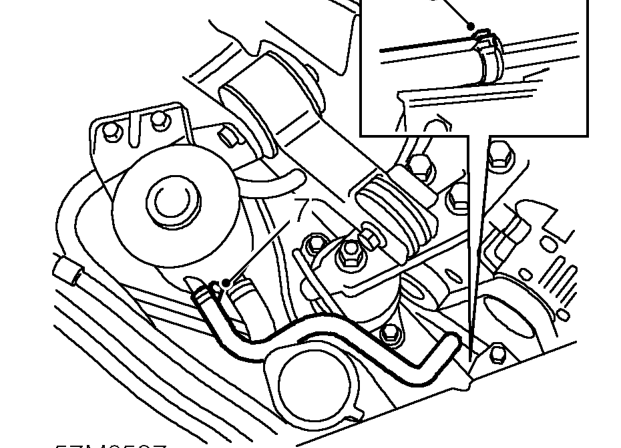

6. Remove clamp plates and grommets.

7. Release clip securing PAS fluid return hose to reservoir and disconnect hose.
8. From underneath vehicle, release clip and disconnect PAS hose from fluid cooler.
9. Release and remove cooler.
10. Release clip and remove hose from cooler.

CAUTION: Plug the connections.

Refit

1. Fit reservoir hose to new cooler and secure with clip.
2. Fit cooler and connect to hose from steering rack.
3. Fasten clip to secure hose.
4. Align cooler to front panel and valance
5. Fit grommets to cooler, fit clamping plates and secure with bolts.
6. Align fluid pipe clips to valance and secure with bolts.
7. Fit front bumper. See BODY, Exterior fittings.
8. Fit underbelly panel. See BODY, Exterior fittings.
9. Bleed power steering. See Adjustments.
