Rover 400 Workshop Manual (1995-2000)22 · Steering
22 · Steering & suspension

Steering lock

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Steering lock
SteeringSteering lock

STEERING LOCK

Service repair no - 57.40.31

Remove

WARNING: SRS procedures must be followed and ALL precautions observed.

  1. Disconnect both the negative and positive leads from battery.
Steering lock – Disconnect both the negative and positive leads from battery.

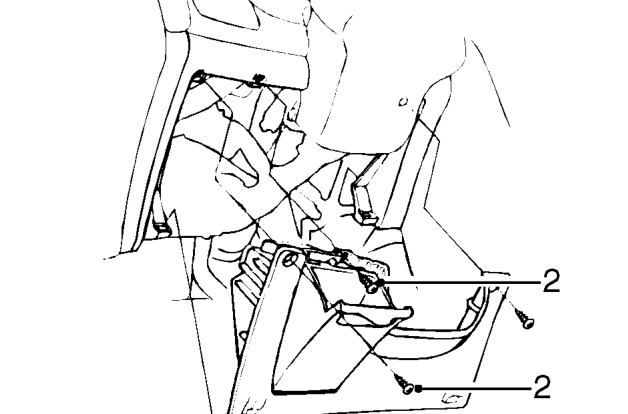

  1. Remove driver’s pocket, 3 retaining screws and lower cover.
Steering lock – Remove driver’s pocket, 3 retaining screws and lower cover.

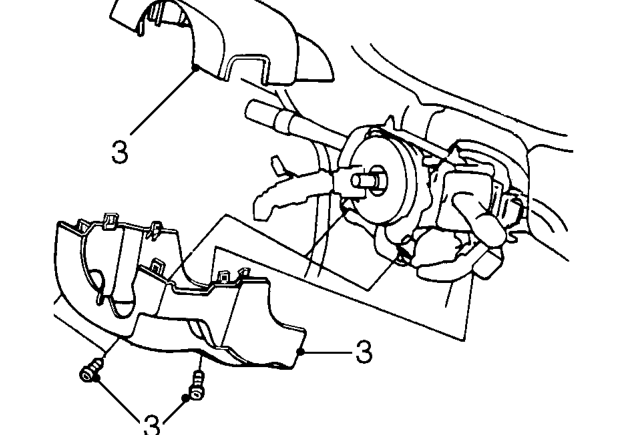

  1. Remove 3 screws, remove column lower and upper covers.
  2. 97.5MY on: Remove passive coil. See ELECTRICAL, Repairs.
Steering lock – 97.5MY on: Remove passive coil. See ELECTRICAL, Repairs.

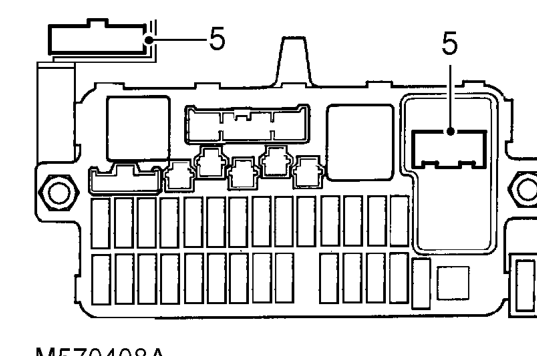

  1. Disconnect 2 starter switch multiplugs from fusebox.
Steering lock – Disconnect 2 starter switch multiplugs from fusebox.

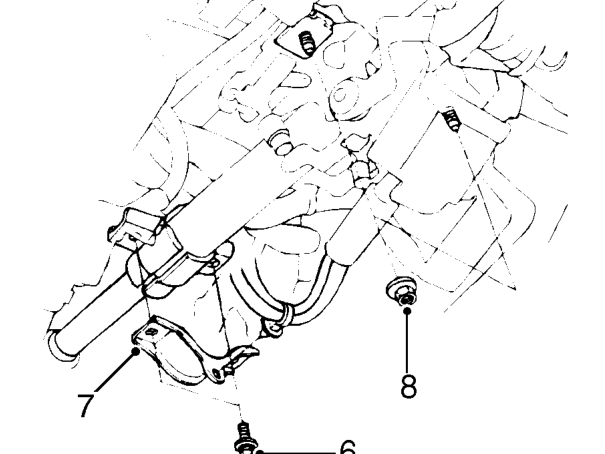

  1. Remove 2 bolts securing lower column clamp to pivot bracket.
  2. Remove clamp.
  3. Remove 2 flange nuts securing column upper bracket.
  4. Lower steering column assembly.
