Power steering pump - ’t’ series with air conditioning (page 2 of 2)

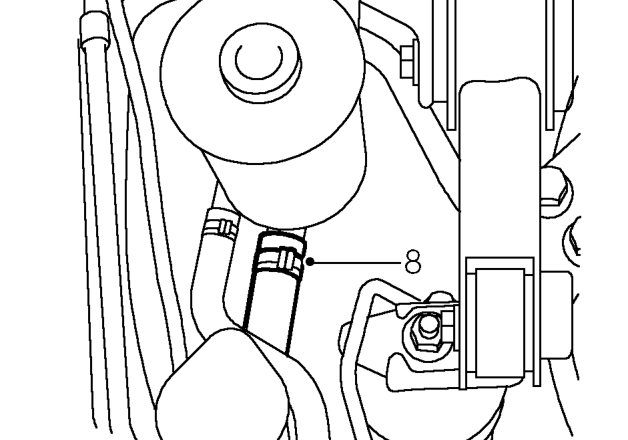

8. Release clip and disconnect power steering pump feed hose from fluid reservoir.

CAUTION: Plug the connections.

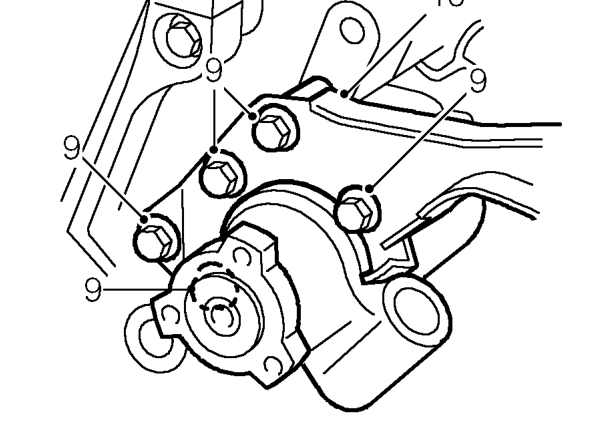

9. Remove 5 bolts securing PAS pump and remove bracket.

NOTE: Collect spacer.

10. Remove PAS pump. Do not carry out further dismantling if component is removed for access only.
11. Release clip and remove hose from pump.

Refit

1. Fit hose to new pump and secure with clip.

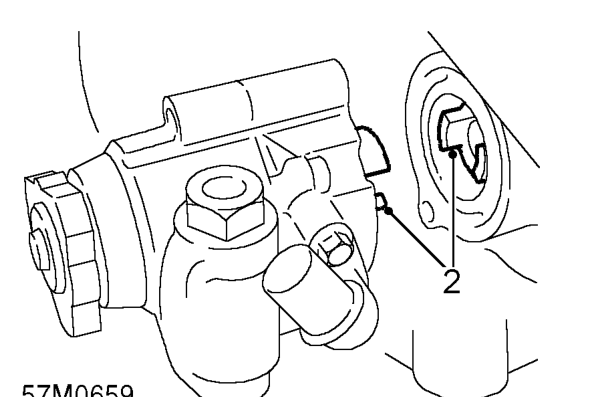

2. Clean mating face of pump and coolant pump housing.

3. Position pump to coolant pump housing ensuring drive lugs are aligned.
4. Position support bracket to pump, fit bolts and tighten to 25 Nm.

NOTE: Ensure spacer is fitted between support bracket and coolant pump housing.

5. Remove plugs from pump and hoses.
6. Fit high pressure pipe to pump.
7. Use NEW sealing washers and tighten banjo bolt to 25 Nm.
8. Fit bolt to secure clip to coolant rail.
9. Connect pump feed hose to fluid reservoir and secure with clip.
10. Position pulley to pump, fit bolts and tighten to 9 Nm.
11. Fit alternator. See ELECTRICAL, Repairs.
12. Refill power steering reservoir and bleed system. See Adjustments.
