Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

Hydraulic operation – R – REVERSE (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Information
Automatic gearboxHydraulic operation – R – REVERSE · page 2 of 2

Hydraulic operation – R – REVERSE (page 2 of 2) – diagram from the Automatic gearbox chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Note: When used, "left" or "right" indicates direction on the flowchart.

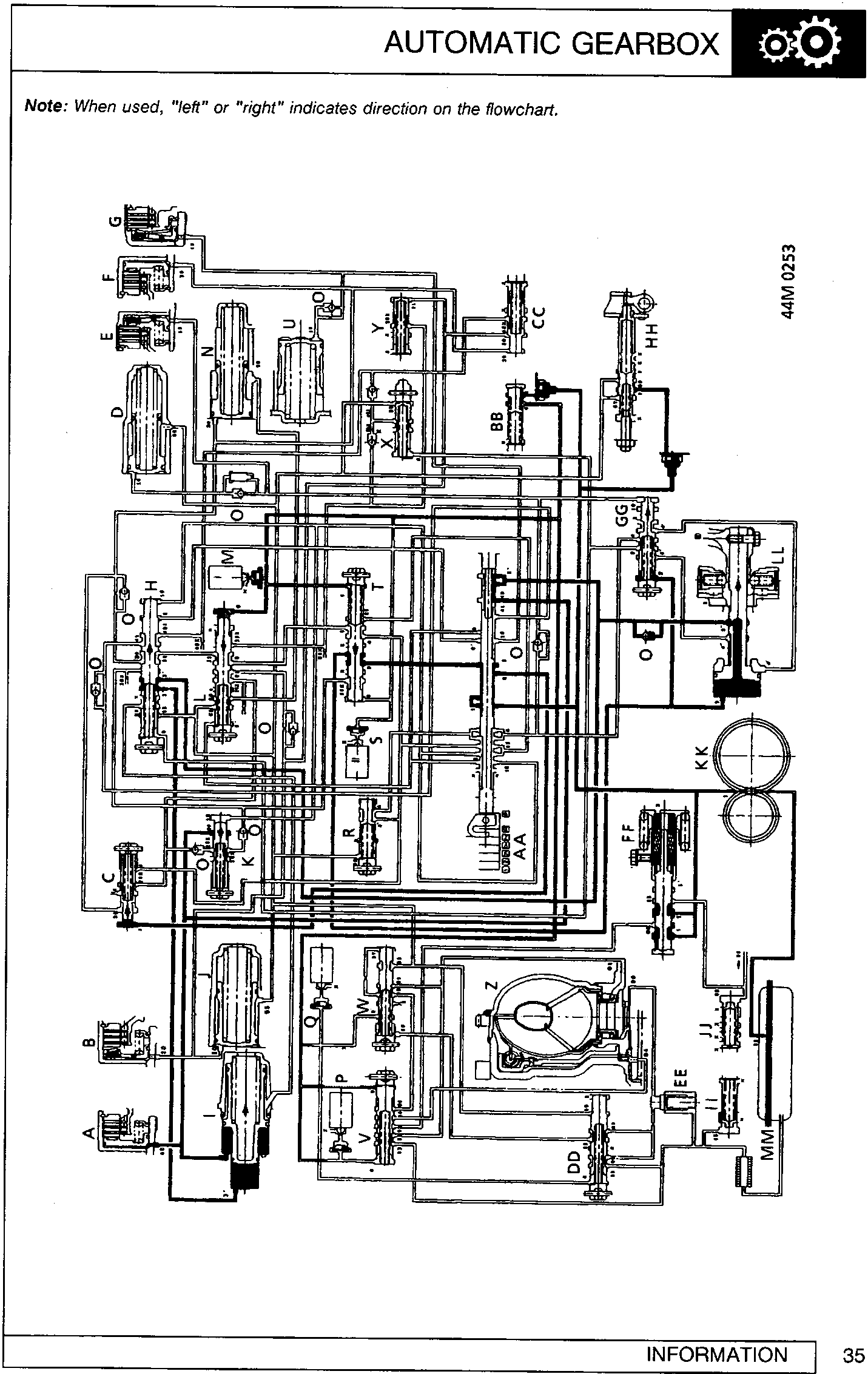

Schematic hydraulic circuit diagram of the automatic gearbox showing interconnected valves, solenoids, clutches, and torque converter with component labels A through ZZ. Document code 44M 0253 printed vertically along the right margin.
