Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition08 · Automatic gearbox
08 · Transmission

No Lock – up (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Information
Automatic gearboxNo Lock – up · page 2 of 2

No Lock – up (page 2 of 2) – diagram from the Automatic gearbox chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Note: When used, "left" or "right" indicates direction on the flowchart.

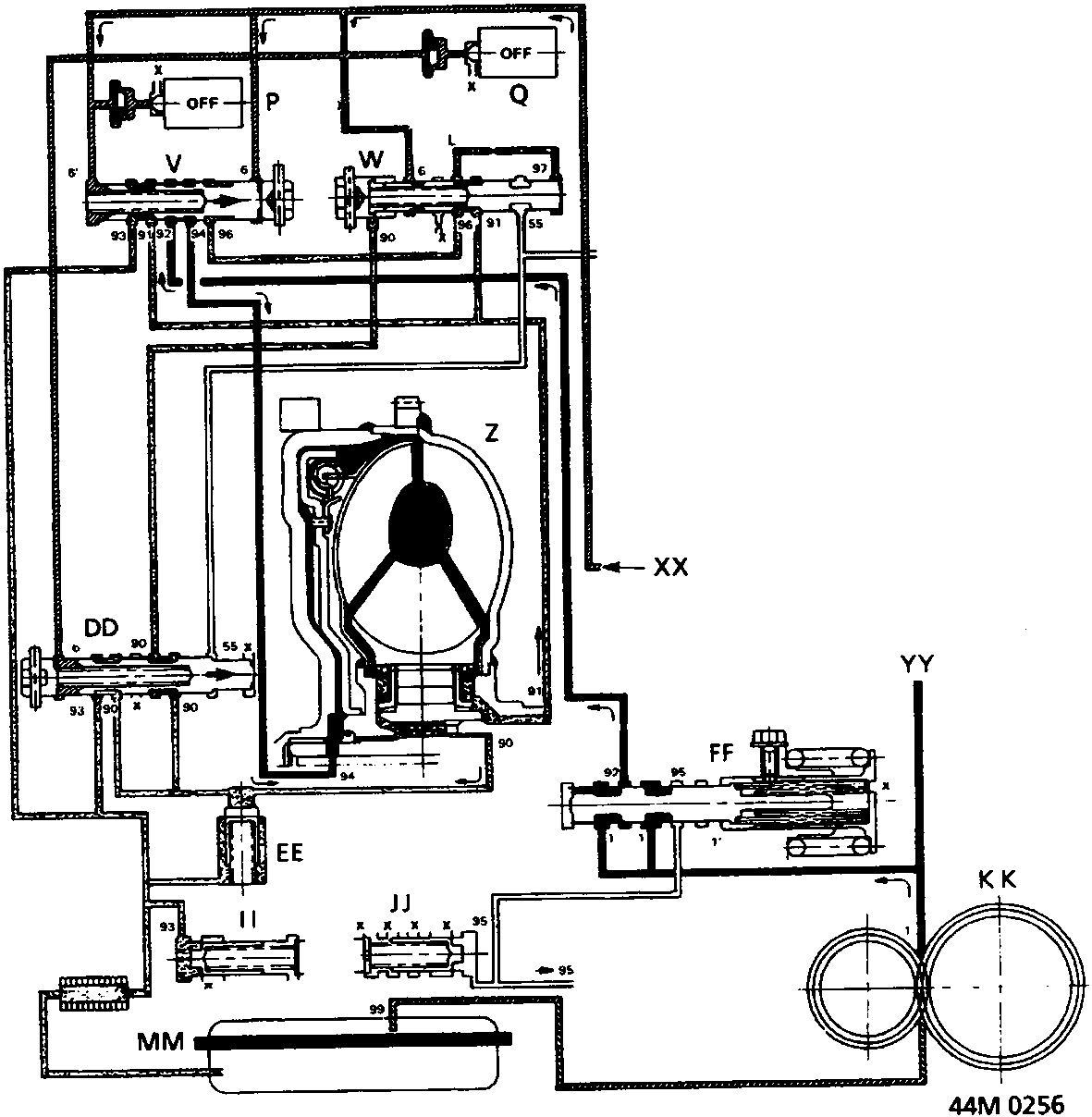

Schematic diagram of the automatic gearbox hydraulic system showing various valves, solenoids, and fluid passages labeled with letters (P, Q, V, W, Z, DD, EE, II, JJ, MM, FF, KK) and numbers (55, 90, 91, 92, 93, 94, 95, 96, 97, 99). The diagram includes an OFF switch symbol and directional arrows indicating fluid flow. Document code 44M 0256 is printed in the bottom right corner.
