Brakes – ABS BY470M0404

70M0404

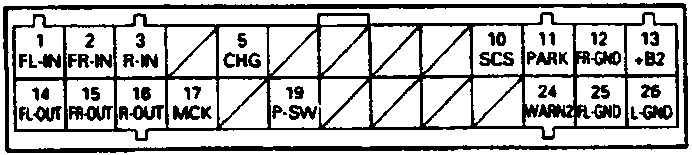

26P CONNECTOR

Number	Wire colour	Terminal name	Description
1	RU	FL – IN front left inlet solenoid valve	Drives left front inlet solenoid valve1
2	RB	FL – IN front right inlet solenoid valve	Drives right front inlet solenoid valve1
3	RW	R – IN rear inlet solenoid valve	Drives rear inlet solenoid valve1
5	WU	CHG Charge	Detects engine operation, activates ABS control unit with engine ON Engine running: 12V Engine stopped: 0V
10	OR	SCS Service check signal	Detects service check connector signal, DTC identification Connected: 0V Disconnected 12V
12	B	FR – GND Front right solenoid valve earth	Earth for front right inlet and outlet solenoid valves
13	W	+ B2 + B2 power source	Power source for ABS control unit control circuit Power source for DTC memory 12V at all times
14	YU	FL – OUT Front left outlet solenoid	Drives front left outlet solenoid valve2
15	YB	FR – OUT Front right outlet solenoid valve	Drives front right outlet solenoid valve2
16	YW	R – OUT Rear outlet solenoid valve	Drives rear outlet solenoid valve2
17	WU	MCK Motor check	Detects pump motor drive signal. ABS indicator light is turned ON if there is open or short circuit Motor ON: 0V / OFF: 12V Open: 12V
			1 Engine running: Solenoid ON 0V/ Solenoid OFF 12V Engine OFF, ignition ON: 0V 2 Engine running: Solenoid ON 0V/ Solenoid OFF 12V Engine OFF, ignition ON; 0V
