Brakes – ABS BY4Circuit diagram

Circuit diagram – diagram from the Brakes – ABS BY4 chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

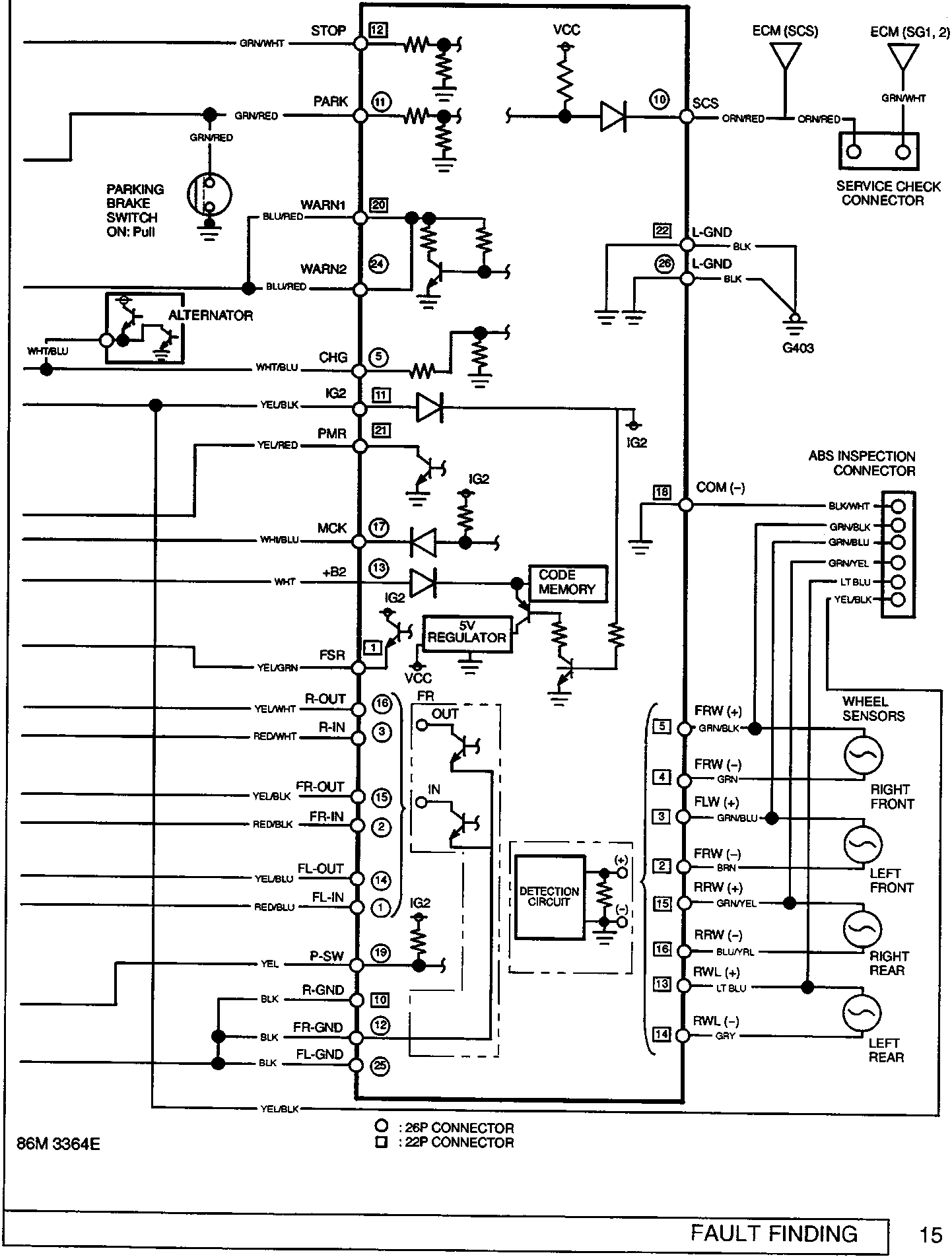

CIRCUIT DIAGRAM

ABS circuit diagram showing connections between the ABS control unit, parking brake switch, alternator, ECM, service check connector, ABS inspection connector, and wheel sensors. Includes pin numbers, wire colors, and internal components like code memory, 5V regulator, and detection circuit.
  1. : 26P CONNECTOR
  2. : 22P CONNECTOR
