Pressure plate inspection

Pressure plate inspection

1. Inspect the fingers of the diaphragm spring for wear at the release bearing contact area.

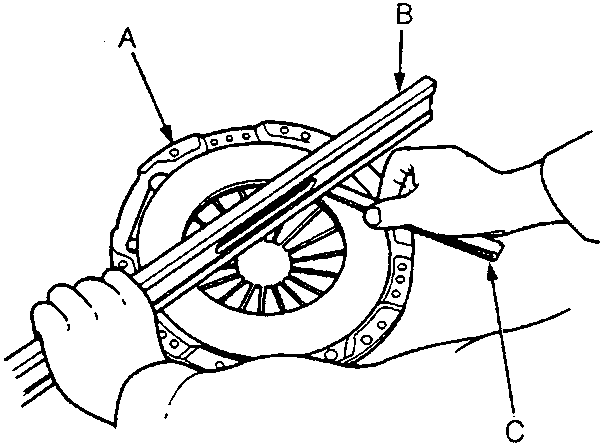

33M0065

1. A Pressure plate
2. B Straight edge
3. C Feeler gauge

2. Inspect the pressure plate surface for wear, cracks, and burning.
3. Inspect for warpage using a straight edge and a feeler gauge.

Note: Measure across the pressure plate at three points.

Standard (New): 0.03mm max.
Service Limit: 0.15 mm

If the warpage exceeds the service limit, replace the pressure plate.

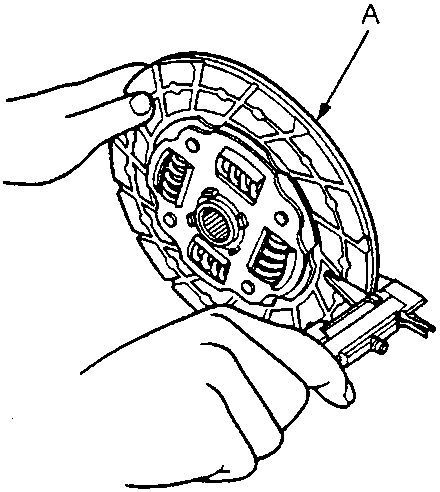

Clutch disc inspection

33M0066

1. A Clutch disc
2. Inspect the lining of the clutch disc for signs of slipping or oil. Replace it if it is burned black or oil soaked.
3. Measure the clutch disc thickness.

Clutch Disc Thickness:
Standard (New): 8.5 – 9.2 mm.
Service Limit: 6.5 mm.

If the thickness is less than the service limit, replace the clutch disc.
