Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition06 · Clutch
06 · Transmission

Original page

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Original page
ClutchOriginal page · page 1 of 2

Original page – diagram from the Clutch chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

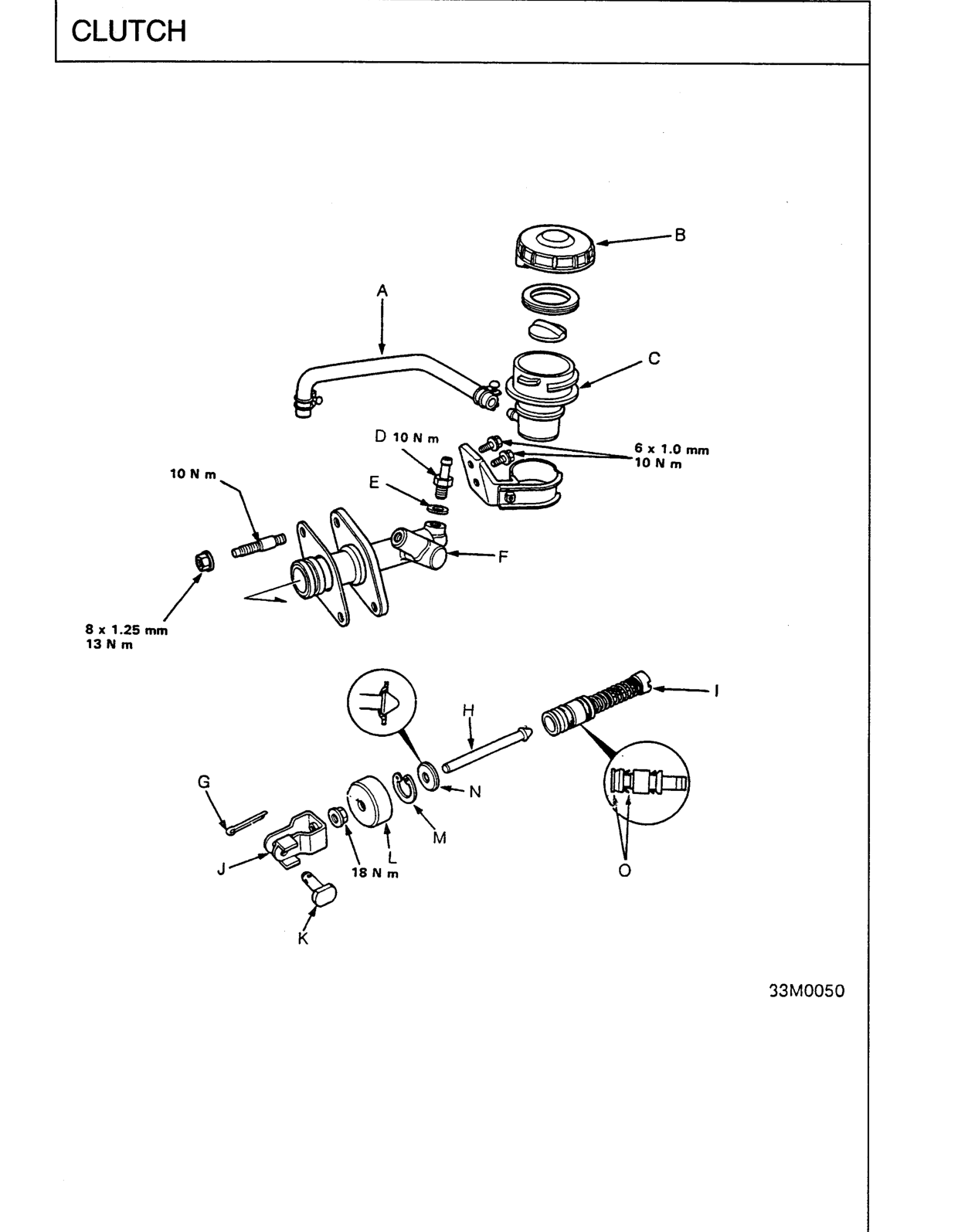

Exploded view diagram of clutch hydraulic components including a reservoir cap (B), master cylinder assembly with pushrod (A), mounting bracket, slave cylinder, and associated fittings. Labels indicate thread sizes and torque values such as 10 N m, 8 x 1.25 mm 13 N m, 6 x 1.0 mm 10 N m, and 18 N m. Component letters A through O identify specific parts.
33M0050
