ClutchDisassembly/Inspection · page 1 of 2

Disassembly/Inspection

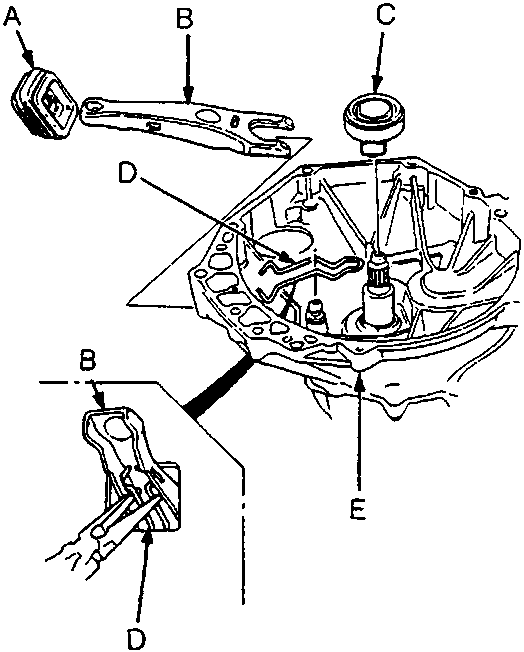

Exploded view of clutch release mechanism showing boot, release fork, release bearing, set spring, and clutch housing with callout labels A through E.

33M0073

  1. A Boot
  2. B Release fork
  3. C Release bearing
  4. D Release fork set spring
  5. E Clutch housing
  6. Remove the boot from the clutch housing.
  7. Remove the release fork from the clutch housing by squeezing the release fork set spring with pliers. Remove the release bearing.

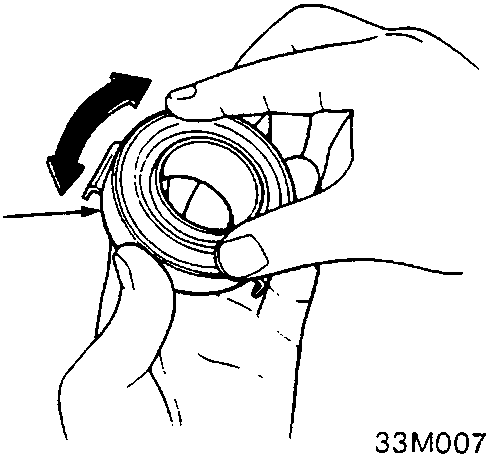

Close-up of a hand holding and spinning a release bearing to check for play.

33M0074

  1. A Release bearing
  2. Check the release bearing for excessive play by spinning it by hand.

CAUTION: The release bearing is packed with grease. Do not wash it in solvent.

  1. If there is excessive play, replace the release bearing with a new one.
