Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition06 · Clutch
06 · Transmission

Disassembly/Inspection (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ClutchDisassembly/Inspection · page 2 of 2
Diagram of release fork and set spring with callouts A and B

33M0075

  1. A Release fork
  2. B Release fork set spring
  3. Apply grease to shaded areas of release fork.

Note: Use only Urea Grease UM264.

  1. Install the release fork set spring on the release fork.

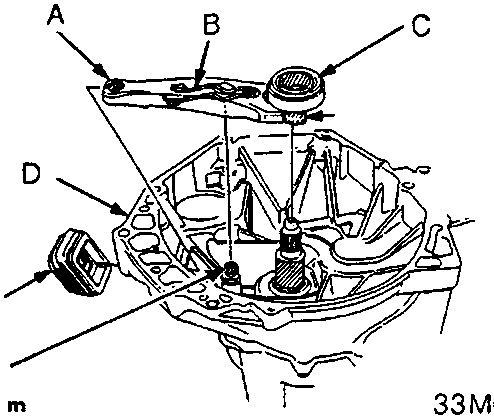

Diagram of clutch assembly showing release fork, bearing, housing, and boot with callouts A through F and torque value 30 Nm

33M0076

  1. A Release fork
  2. B Release fork set spring
  3. C Release bearing
  4. D Clutch housing
  5. E Boot
  6. F Release fork
  1. With the release fork slid between the release bearing pawls, install the release bearing on the mainshaft while inserting the release fork through the hole in clutch housing.
  2. Align the detent of the release fork with the release fork bolt, then press the release fork over the release fork bolt squarely.
  3. Install the boot, making sure that there is no clearance; release fork – to – boot, and boot – to – clutch housing.

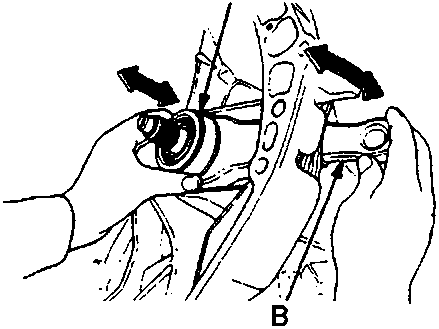

Diagram showing hands installing release bearing onto release fork with callouts A and B

33M0077

  1. A Release bearing
  2. B Release fork
  1. Move the release fork right and left to make sure that the release fork fits properly against the release bearing, and that the release bearing slides smoothly.
