600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Pressure plate and clutch disc installation
ClutchPressure plate and clutch disc installation · page 1 of 2
Diagram showing hands holding a clutch disc with callout A pointing to the rivets on the lining surface.

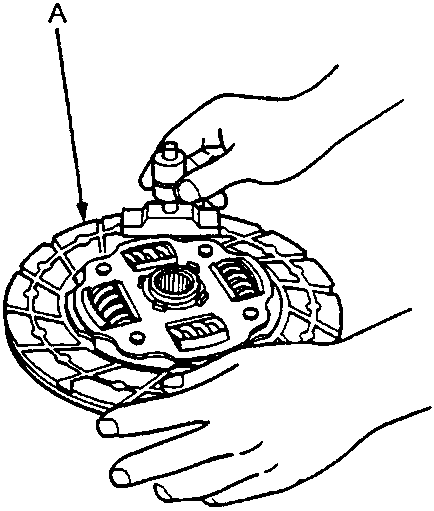

33M0067 A Clutch disc 3. Measure the depth from the lining surface to the rivets, on both sides. Rivet Depth: Standard (New): 1.4 mm min. Service Limit: 0.2 mm. If the depth is less than the service limit, replace the clutch disc.

Pressure plate and clutch disc installation

Diagram showing a flywheel (18G 1674), a clutch disc (A), and a alignment tool (18G 1673) arranged for assembly.

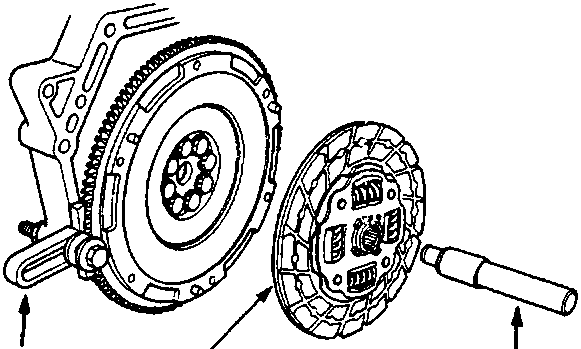

33M0070 A Clutch disc 1. Install the clutch disc using the special tools as shown.
Diagram showing the pressure plate (A) being aligned and installed over the clutch disc and flywheel assembly.

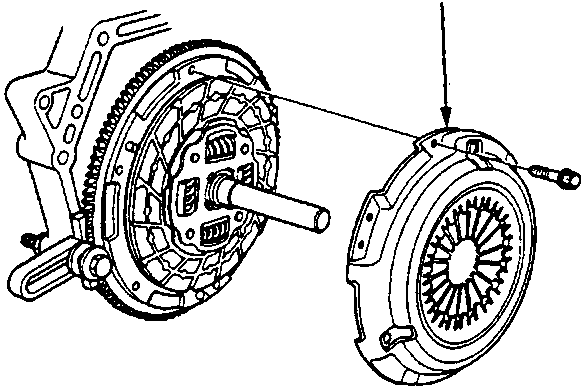

33M0071 A Pressure plate 2. Install the pressure plate.
