Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition06 · Clutch
06 · Transmission

Pressure plate and clutch disc installation (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
ClutchPressure plate and clutch disc installation · page 2 of 2

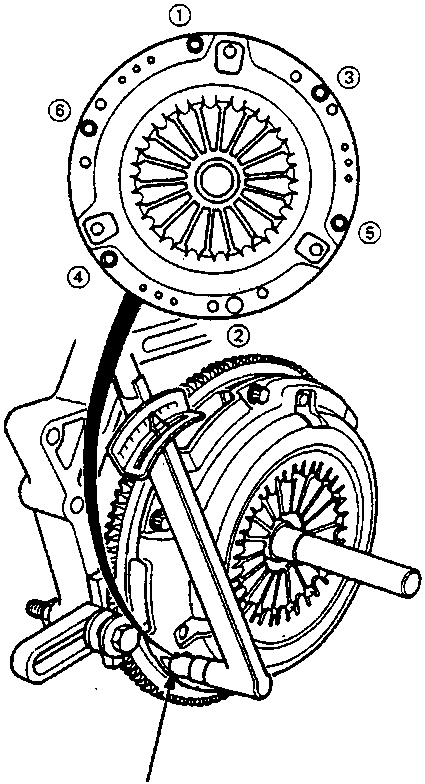

Diagram of clutch assembly showing mounting bolts and special alignment tool

A   26 N m

  1. Torque the mounting bolts in a crisscross pattern as shown. Tighten them in several steps to prevent warping the diaphragm spring.
  2. Remove the special tools.
