33M0054

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

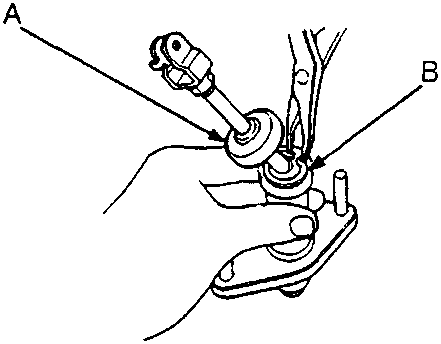

33M0054

1. Dust seal
2. Circlip
1. Remove the dust seal from the clutch master cylinder.
2. Pry the circlip off the clutch master cylinder.

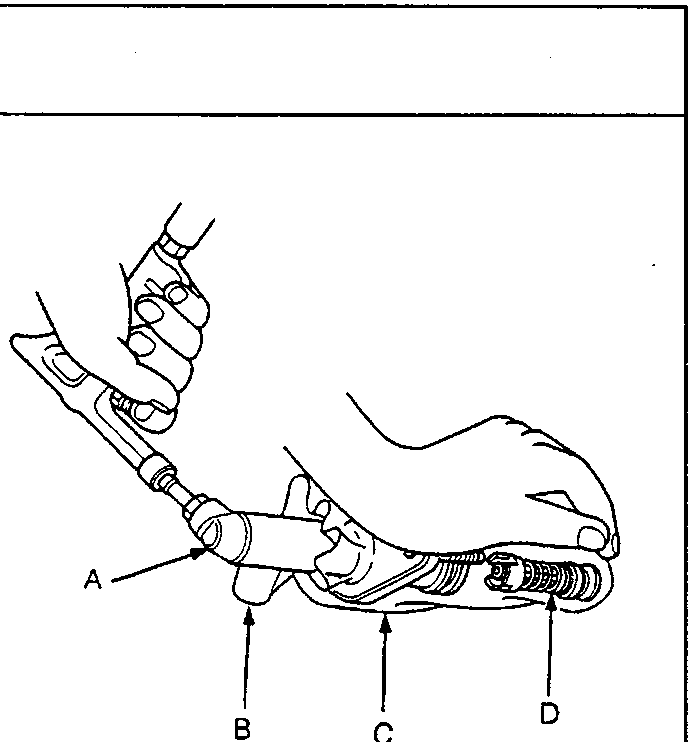

33M0055

1. Clutch master cylinder
2. Plug port
3. Cloth
4. Piston assembly
3. Carefully remove the piston by applying air pressure through the clutch line hole.

CAUTION:

• Hold a cloth over the clutch master cylinder, to stop the piston in case it comes out suddenly.

CAUTION: Plug the connections.

• Clean all disassembled parts in solvent and blow through all ports and passages with compressed air.

Reassembly

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

• Before reassembling, check that all parts are free of dust and other foreign particles.
• Make sure no dirt or other foreign matter is allowed to contaminate the brake fluid.
• Do not mix different brands of brake fluid as they may not be compatible.
• Do not re – use the drained fluid. Use only clean DOT 3 or 4 brake fluid.
