Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition06 · Clutch
06 · Transmission

33M0054 (page 2 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Clutch33M0054 · page 2 of 3

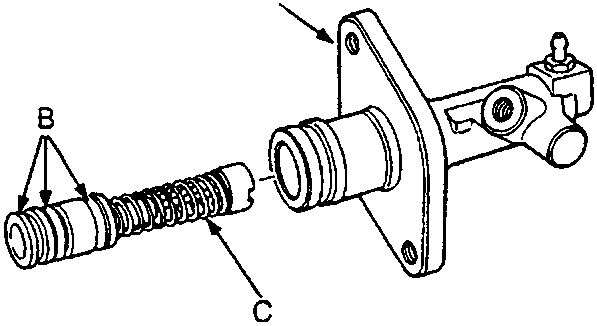

Exploded view diagram of a clutch master cylinder showing the body, piston assembly with spring, and callouts A, B, and C.

33M0056

  1. Clutch master cylinder body
  2. Apply Rubber grease
  3. Piston assembly
  4. Assemble the piston noting the proper direction of the parts.
  5. Slide the piston assembly into the clutch master cylinder.

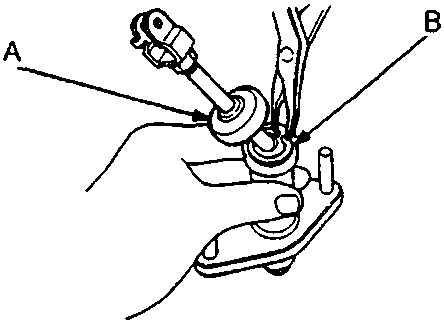

Diagram showing a hand installing a dust seal and circlip onto the end of a clutch master cylinder pushrod. Callouts A and B point to the components.

33M0057

  1. Dust seal
  2. Circlip
  3. Install the circlip in the groove of the clutch master cylinder.
  4. Install the dust seal.
