3. Non - sealed connectors

86M 2553

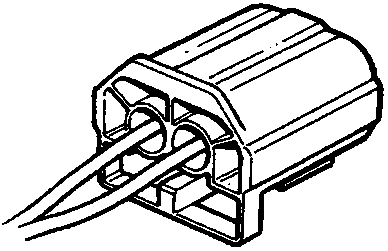

Examples of this connector are the style used on the rear of instrument packs, etc.

Insert test probe here

86M 2554

For testing at these type of connectors bring the tester probe into contact with the terminal from the wiring side (back) of the connector.
Do not force it as damage to the pin will result.
