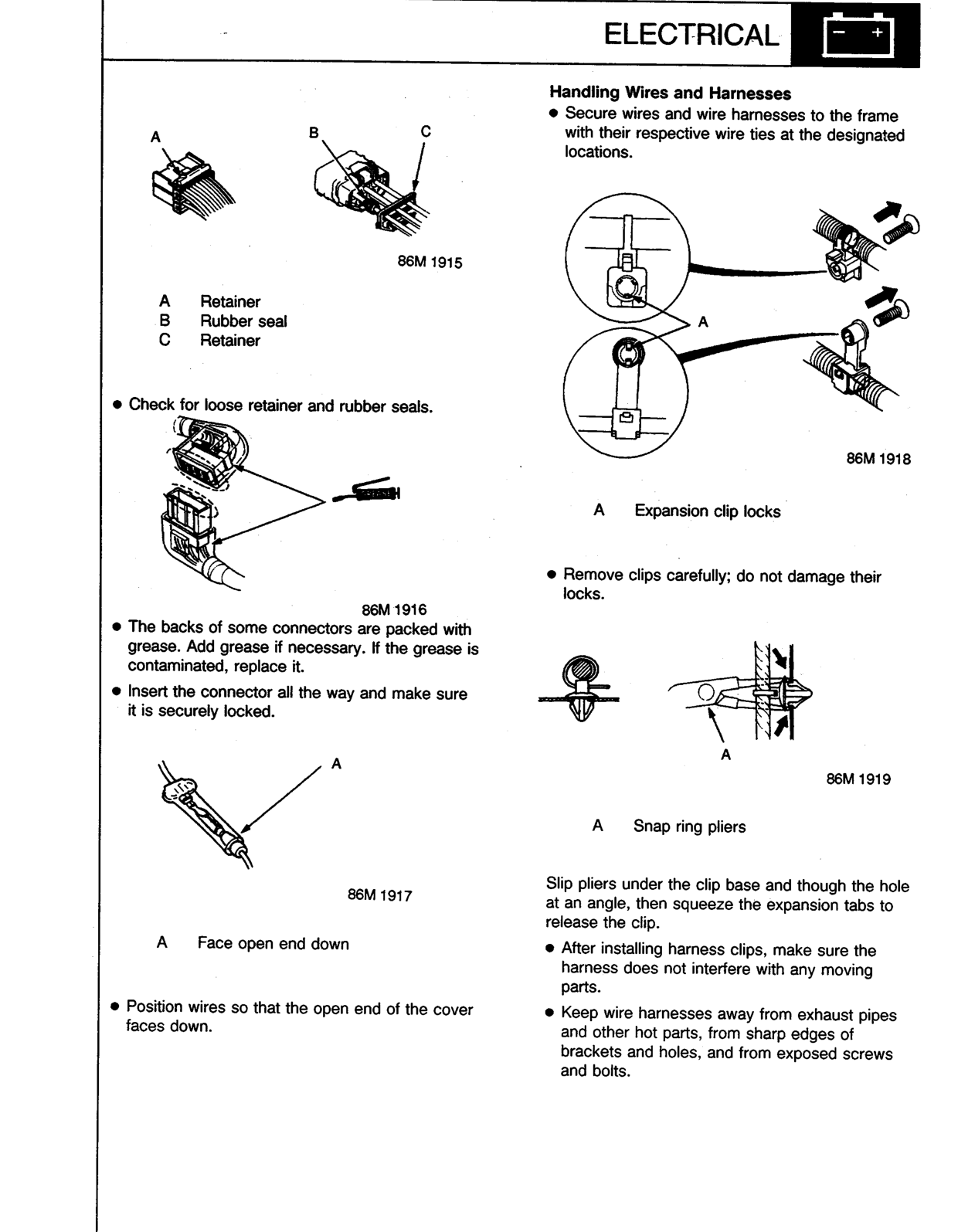

ElectricalOriginal page
Diagram of connector parts labeled A, B, C
  1. A Retainer
  2. B Rubber seal
  3. C Retainer

86M 1915

  • Check for loose retainer and rubber seals.

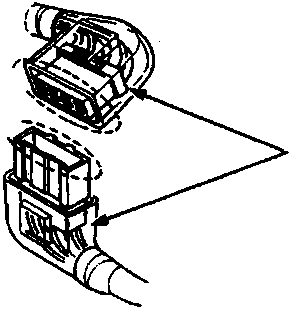

Diagram showing connector inspection with grease

86M 1916

  • The backs of some connectors are packed with grease. Add grease if necessary. If the grease is contaminated, replace it.
  • Insert the connector all the way and make sure it is securely locked.
Diagram of wire cover orientation labeled A

86M 1917

A Face open end down

  • Position wires so that the open end of the cover faces down.
  • Secure wires and wire harnesses to the frame with their respective wire ties at the designated locations.

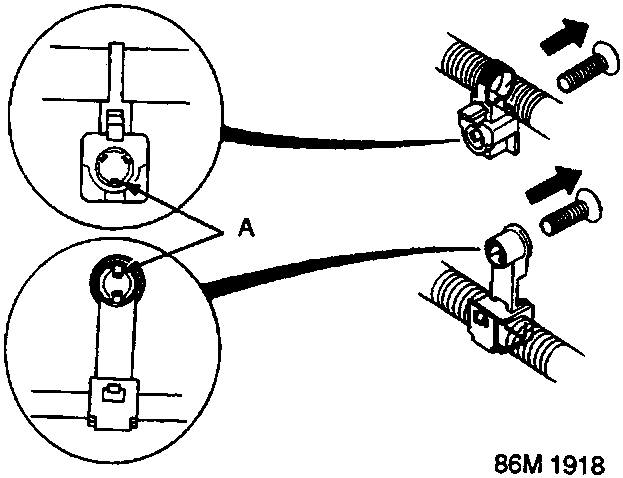

Diagram of expansion clip locks being removed from a frame

86M 1918

A Expansion clip locks

  • Remove clips carefully; do not damage their locks.
Diagram of snap ring pliers removing a clip
Diagram of a clip base

86M 1919

A Snap ring pliers

Slip pliers under the clip base and though the hole at an angle, then squeeze the expansion tabs to release the clip.

  • After installing harness clips, make sure the harness does not interfere with any moving parts.
  • Keep wire harnesses away from exhaust pipes and other hot parts, from sharp edges of brackets and holes, and from exposed screws and bolts.
