Wire insulation under the crimp

Symptom

Incorrect circuit operation, possibly more than one circuit affected.

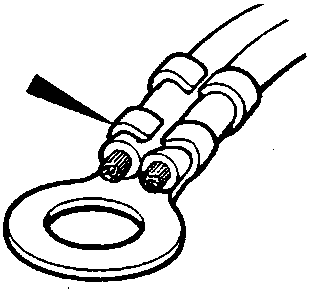

86M 2548

Wire insulation under the crimp

Cause

The earth terminal/header does not make proper contact with the wire because the crimp is over the insulation.

Action

Replace wiring terminal.
Be careful not to make the wire too short, if necessary add a length of wire and join using a "Duraseal" heatshrink connector, see Repair Techniques.
