ElectricalWire Colour Codes
| A | Battery | O | Horn |
| B1 | Earth terminal | P | Diode |
| B2 | Component earth | Q | Speaker, buzzer |
| C | Fuse | R1 | Mast antenna |
| D | Coil, solenoid | R2 | Window antenna |
| E | Cigarette lighter | S | Transistor (Tr) |
| F | Resistor | T1 | Normally open relay |
| G | Variable resistor | T2 | Normally closed relay |
| H | Thermistor | U | Condenser |
| I | Ignition switch | V1 | Normally open switch |
| J | Bulb | V2 | Normally closed switch |
| K | Heater | W | Light emitting diode (LED) |
| L | Motor | X1 | Input connection |
| M | Pump | X2 | Output connection |
| N | Fuse | Y | Connector |
| Z | Reed switch |
Wire Colour Codes
The following abbreviations are used to identify wire colours in the circuit schematics:
WHT.....White
YEL......Yellow
BLK.....Black
BLU.....Blue
GRN.....Green
RED.....Red
ORN.....Orange
PNK.....Pink
BRN.....Brown
GRY.....Grey
PUR.....Purple
LT BLU..Light Blue
LT GRN..Light Green
86M 1924

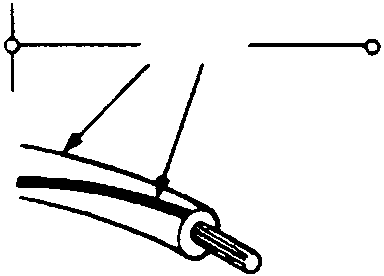

The wire insulation has one colour or one colour with another colour stripe.
The second colour is the stripe.
Abbreviations used in this section
KE European specification
KG German specification
KS Scandinavian specification
