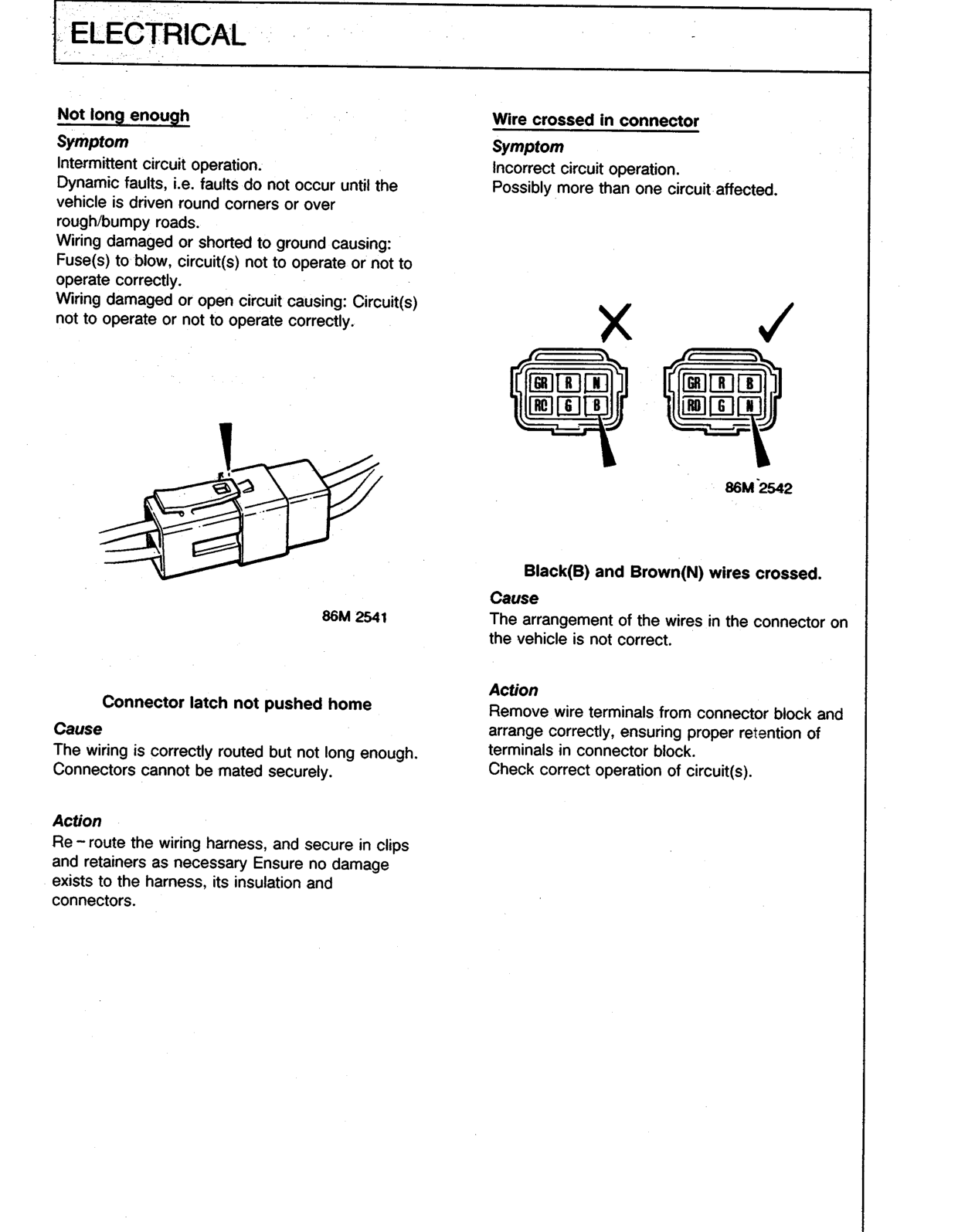

Not long enough

Not long enough

Symptom

Intermittent circuit operation.

Dynamic faults, i.e. faults do not occur until the vehicle is driven round corners or over rough/bumpy roads.

Wiring damaged or shorted to ground causing: Fuse(s) to blow, circuit(s) not to operate or not to operate correctly.

Wiring damaged or open circuit causing: Circuit(s) not to operate or not to operate correctly.

86M 2541

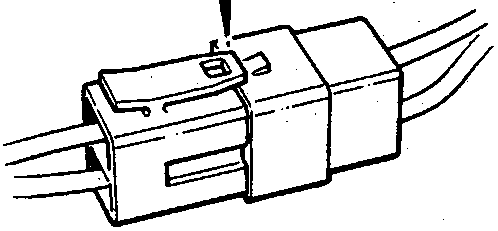

Connector latch not pushed home

Cause

The wiring is correctly routed but not long enough. Connectors cannot be mated securely.

Action

Re – route the wiring harness, and secure in clips and retainers as necessary Ensure no damage exists to the harness, its insulation and connectors.

Wire crossed in connector

Symptom

Incorrect circuit operation.

Possibly more than one circuit affected.

86M 2542

Black(B) and Brown(N) wires crossed.

Cause

The arrangement of the wires in the connector on the vehicle is not correct.

Action

Remove wire terminals from connector block and arrange correctly, ensuring proper retention of terminals in connector block.

Check correct operation of circuit(s).
