Engine management system – PGM-FiFuel Delivery

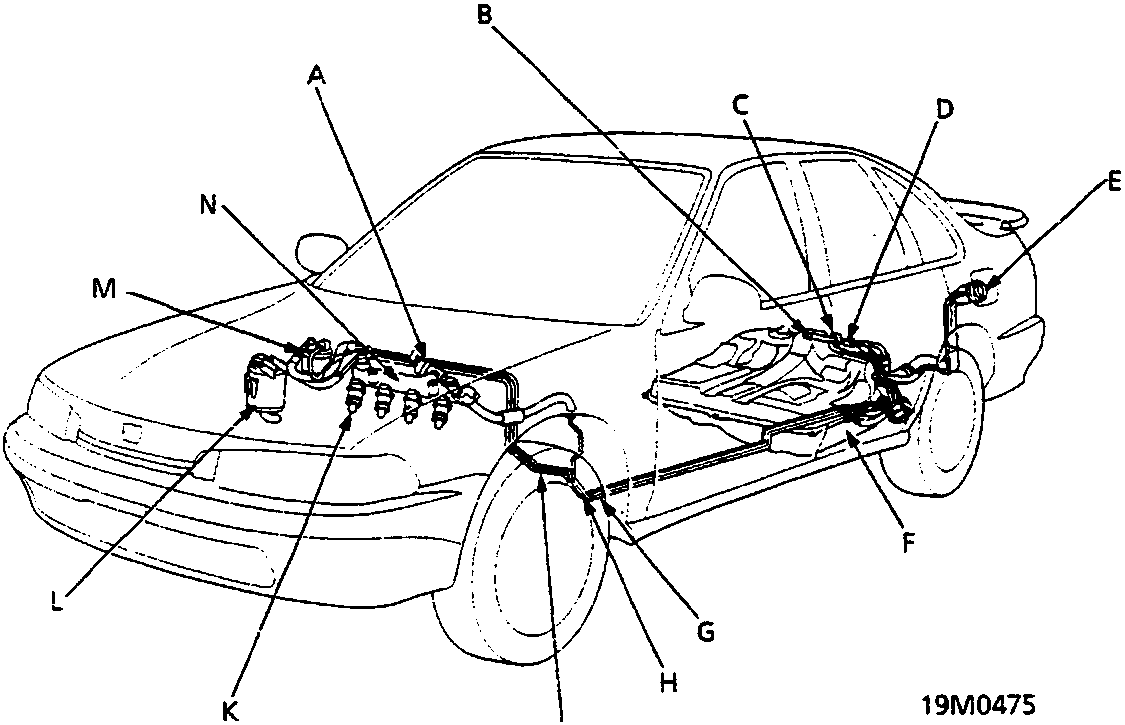

Fuel Delivery
| A | Fuel Pressure Regulator | G | Fuel return pipe |
| B | Fuel tank Evaporative Emission (EVAP) valve | H | Fuel feed pipe |
| C | Evaporative Emission (EVAP) two way valve | J | Fuel vapour pipe |
| D | Fuel pump | K | Fuel injectors |
| E | Fuel fill cap | L | Evaporative Emission (EVAP) control canister |
| F | Fuel tank | M | Fuel filter |
| N | Fuel rail |
