The emission control system includes a Three Way Catalytic Converter (TWC), Exhaust Gas Recirculation (EGR) system, Positive Crankcase Ventilation (PCV) system and Evaporative Emission (EVAP) control system.

Three Way Catalytic Converter (TWC)

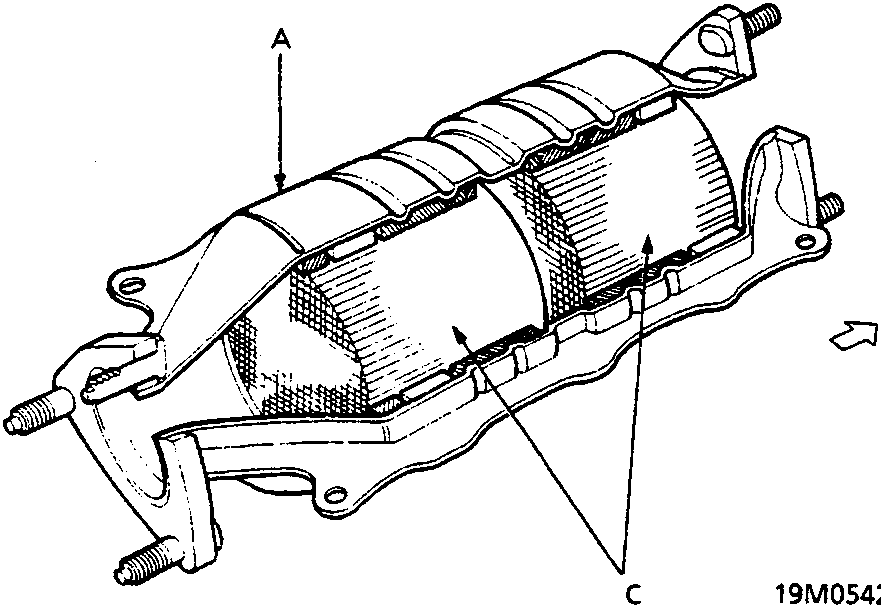

Cutaway diagram of a Three Way Catalytic Converter showing the housing, internal catalysts, and front-of-vehicle orientation.
  1. Housing
  2. Front of vehicle
  3. Three way catalysts

The Three Way Catalytic Converter (TWC) is used to convert hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx) in the exhaust gas to carbon dioxide (CO2), diNitrogen (N2) and water vapour.
