Engine management system – PGM-FiComponent locations

COMPONENT LOCATIONS

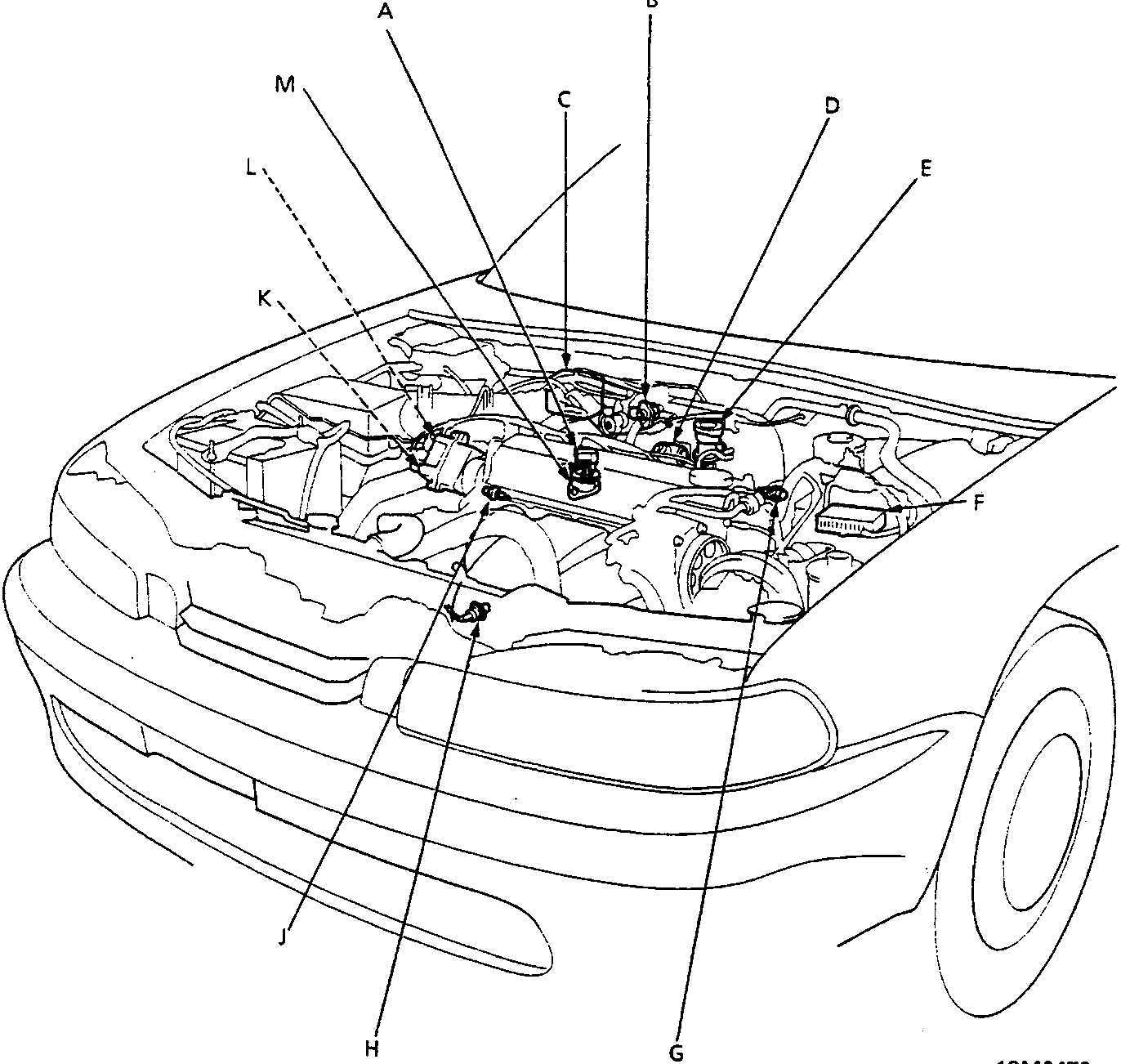

Diagram of engine bay showing component locations labeled A through M

Under Bonnet

AExhaust Gas Recirculation (EGR) valve lift sensorHHeated Oxygen Sensor (HO2S)
BThrottle Position (TP) sensorJEngine Coolant Temperature (ECT) sensor
CControl boxKIgnition Control Module (ICM)
DIdle Air Control (IAC) valveLCrank Cylinder Sensor (TDC/CKP/CYP)
EFast idle thermo valveMExhaust Gas Recirculation (EGR) valve
FInjector resistor
GIntake Air Temperature (IAT) sensor
