Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition04 · Engine management system – PGM-Fi
04 · Engine

Circuit diagram (page 2 of 2)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Information
Engine management system – PGM-FiCircuit diagram · page 2 of 2

Circuit diagram (page 2 of 2) – diagram from the Engine management system – PGM-Fi chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

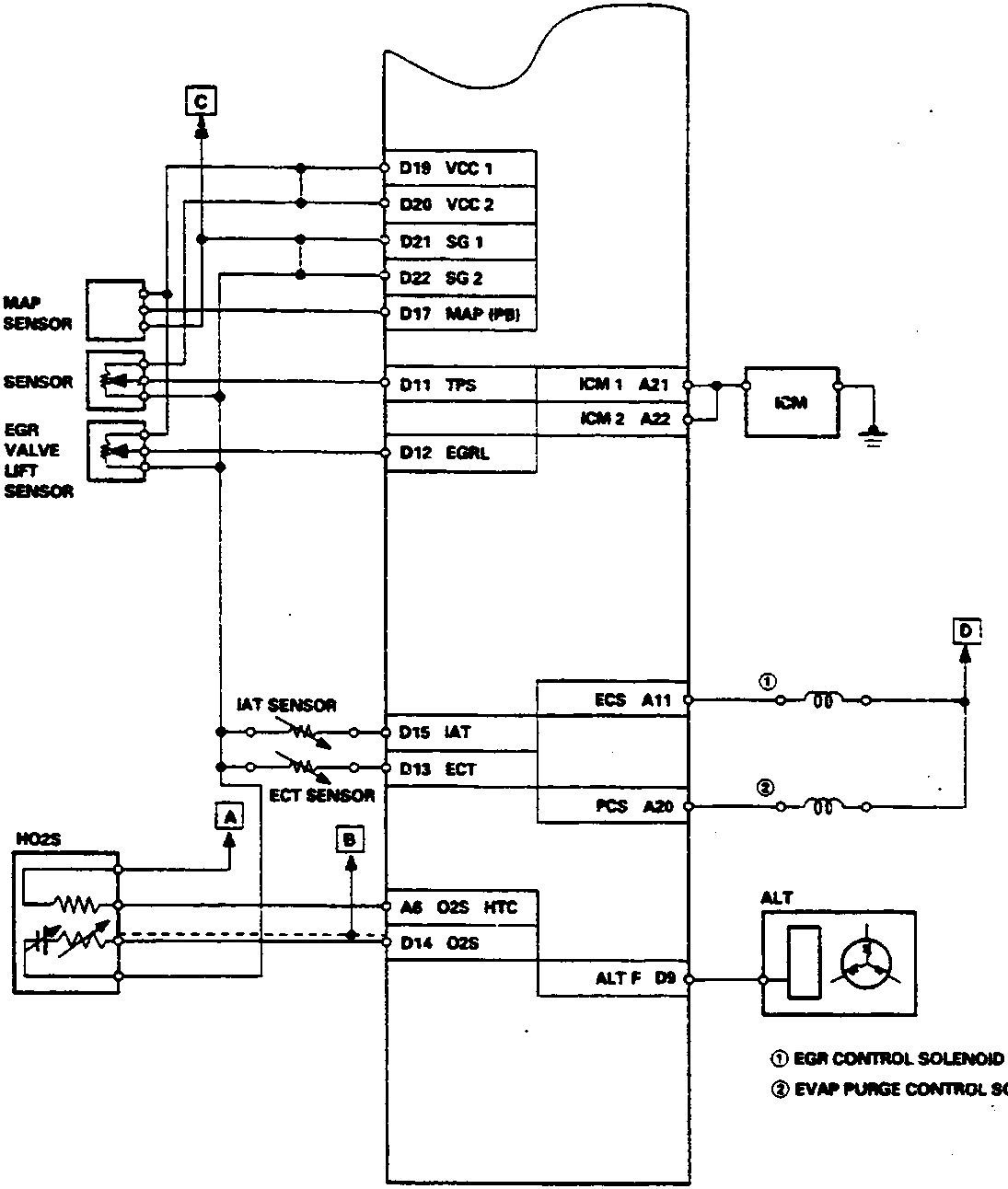

Wiring diagram showing connections between sensors (MAP, TP, EGR Valve Lift, IAT, ECT, HO2S), the ICM, ECS, PCS, and ALT components. Includes pin labels such as D19 VCC 1, D11 TPS, D15 IAT, A6 O2S HTC, and solenoid valve symbols.

① EGR CONTROL SOLENOID VALVE

② EVAP PURGE CONTROL SOLENOID VALVE
