SuspensionRear knuckle bushing replacement
Rear knuckle bushing replacement – diagram from the Suspension chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.
REAR KNUCKLE BUSHING REPLACEMENT

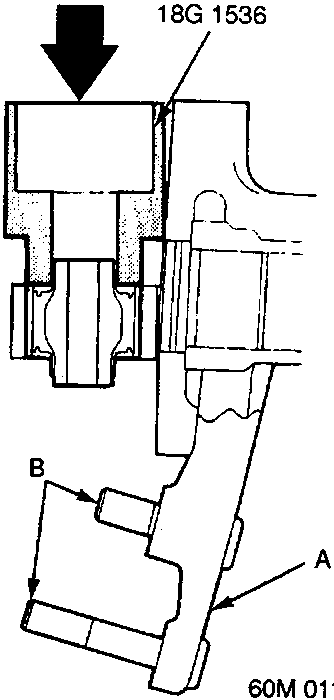

Removal
A Knuckle
B Studs
- Remove the studs before pressing out bushing.

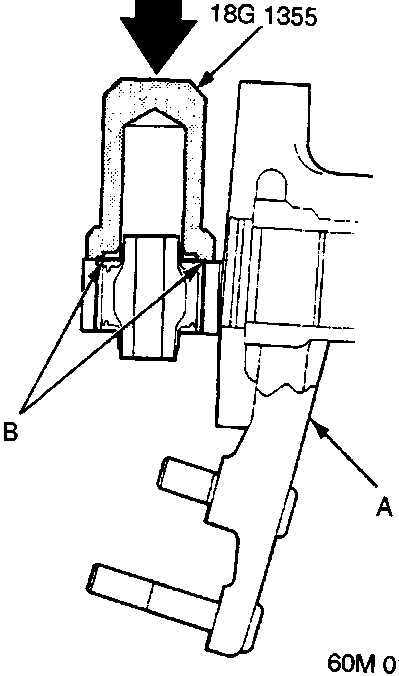

Installation
A Knuckle
B Align
