Components

Components

A    Knuckle protector
B     6 mm Bolt
C     Hub unit
D     6 mm Brake disc retaining screw
E     6 mm Bolt
F     Brake disc
G     Wheel nut
H     Spindle nut
I     Hub cap
J     Splash guard
K     Knuckle

Note: Use only wheel weights suitable for aluminium wheels. Non-genuine wheel weights may corrode and damage the aluminium wheels.

• For aluminium wheels, remove the centre cap by levering it out with a flat bladed screwdriver. Use a rag at the point you are going to lever because aluminium alloy wheels can be easily damaged. Avoid damage by not allowing it to fall during removal.
• Before installing the brake disc, clean the mating surfaces of the rear hub and inside of the brake disc.
• Before installing the wheel, clean the mating surfaces of the brake disc and inside of the wheel.
• Check the splash guard for damage.

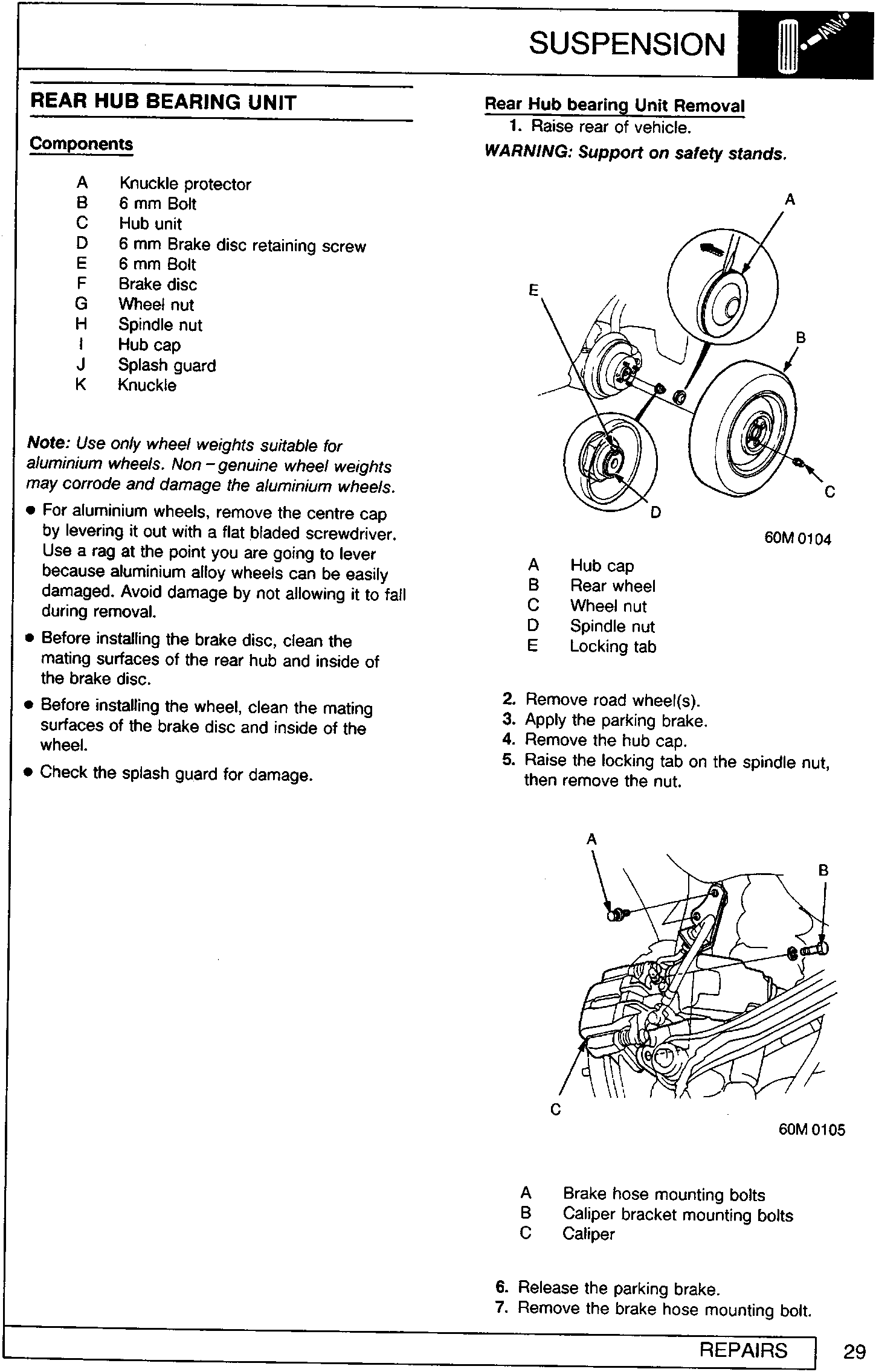

Rear Hub bearing Unit Removal

1. Raise rear of vehicle.
   WARNING: Support on safety stands.

1. Hub cap
2. Rear wheel
3. Wheel nut
4. Spindle nut
5. Locking tab

2. Remove road wheel(s).
3. Apply the parking brake.
4. Remove the hub cap.
5. Raise the locking tab on the spindle nut, then remove the nut.

1. Brake hose mounting bolts
2. Caliper bracket mounting bolts
3. Caliper

6. Release the parking brake.
7. Remove the brake hose mounting bolt.
