Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition13 · Suspension
13 · Steering & suspension

Components (page 3 of 5)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
SuspensionComponents · page 3 of 5

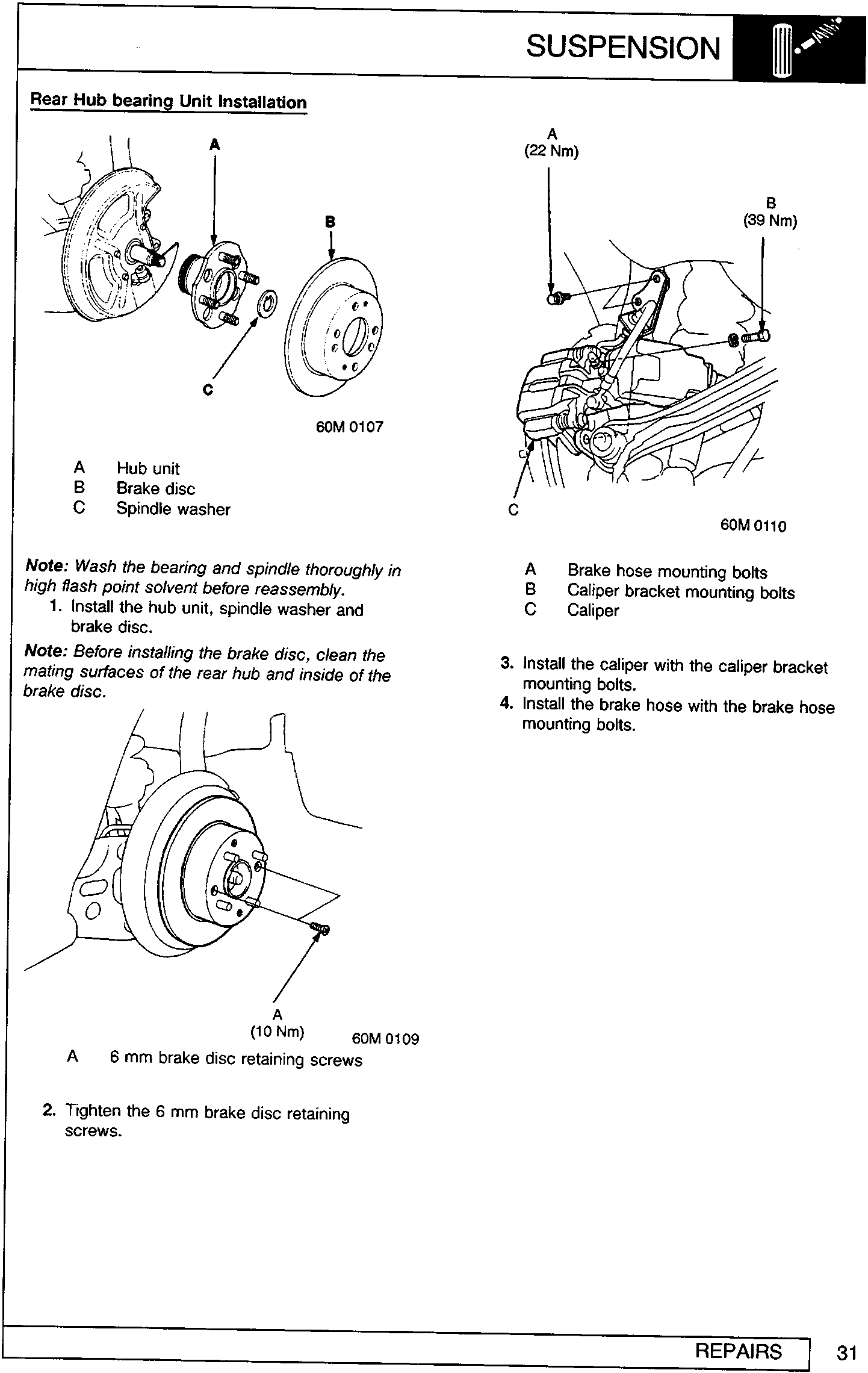

Exploded view of rear hub unit, brake disc, and spindle washer with callouts A, B, C
A Hub unit B Brake disc C Spindle washer

Note: Wash the bearing and spindle thoroughly in high flash point solvent before reassembly.

  1. Install the hub unit, spindle washer and brake disc.

Note: Before installing the brake disc, clean the mating surfaces of the rear hub and inside of the brake disc.

A 6 mm brake disc retaining screws
  1. Tighten the 6 mm brake disc retaining screws.
A Brake hose mounting bolts B Caliper bracket mounting bolts C Caliper
  1. Install the caliper with the caliper bracket mounting bolts.
  2. Install the brake hose with the brake hose mounting bolts.
