SUSPENSION

REAR DAMPER

Rear Damper Removal

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
  2. Remove the rear seat, see BODY

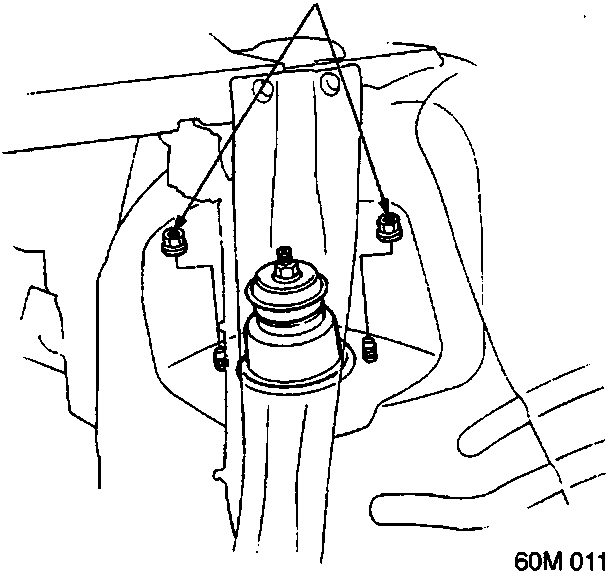

Diagram showing the upper mounting area of the rear damper with callout A pointing to the mounting nuts

A   Damper mounting nuts

  1. Remove the damper mounting nuts.

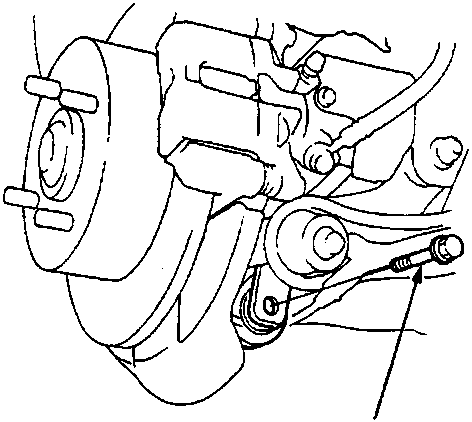

Diagram showing the lower mounting area of the rear damper near the brake assembly with callout A pointing to the mounting bolt

A   Damper mounting bolt

  1. Remove the damper mounting bolts.

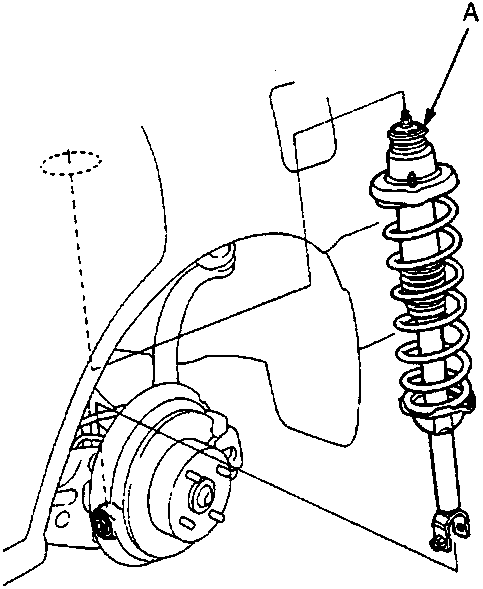

Diagram showing the complete rear damber and spring assembly installed in the vehicle suspension with callout A pointing to the top mount

A   Damper

  1. Lower the rear suspension and remove the damper.
