13 · Steering & suspension

Removal/Inspection (page 2 of 3)

Make: Rover
Model: 600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section: Repairs

SuspensionRemoval/Inspection · page 2 of 3

Removal/Inspection (page 2 of 3) – diagram from the Suspension chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

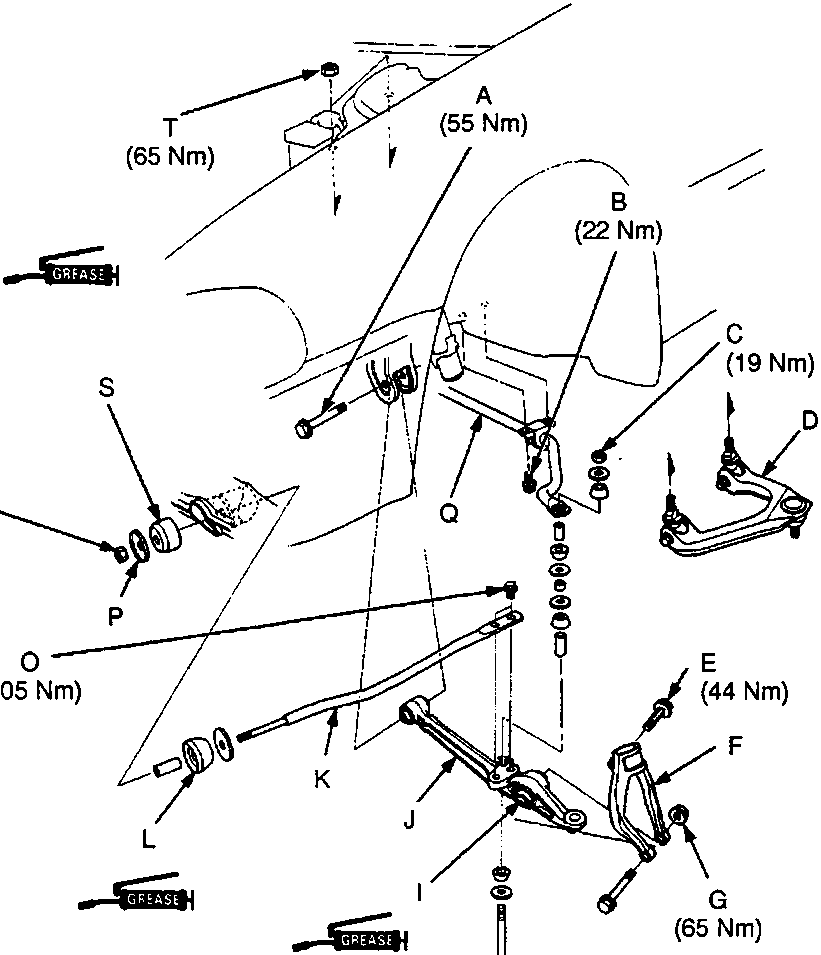

Exploded diagram of front suspension components showing control arms, bushings, bolts, and grease points with torque values in Nm. Labels include A (55 Nm), B (22 Nm), C (19 Nm), D, E (44 Nm), F, G (65 Nm), H, I, J, K, L, M, N, O (105 Nm), P, Q, R (68 Nm), S, T (65 Nm). — 60M 0090

‹ Prev Removal/Inspection Next ›
