Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement19 · Restraint systems
19 · Body & interior

Airbag manual deployment (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Precautions
Restraint systemsAirbag manual deployment · page 2 of 2
Diagram

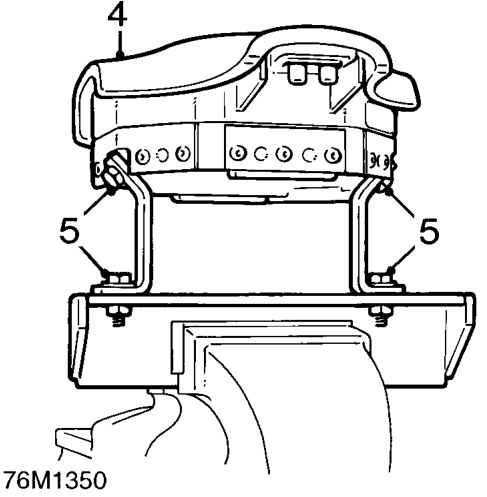

  1. Secure airbag module to tool SMD 4082/2 . Ensure module is correctly secured using both fixings.
  2. Ensure airbag module mounting brackets are secure.

WARNING: Ensure deployment tool SMD 4082/1 is not connected to battery.

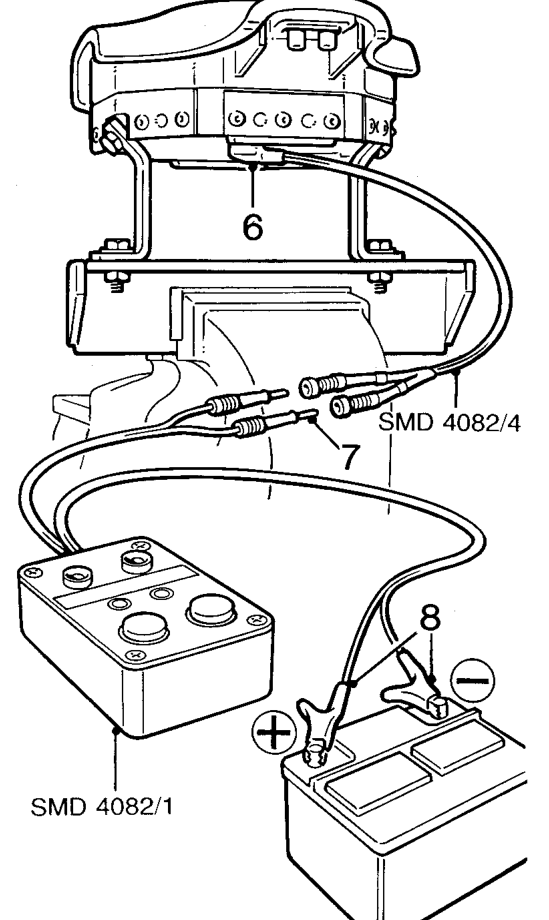

Ensure airbag module mounting brackets are secure.
  1. Connect flylead SMD 4082/4 to airbag module.
  2. Connect flylead SMD 4082/4 to tool SMD 4082/1.

WARNING: Do not lean over airbag module whilst connecting.

  1. Connect tool SMD 4082/1 to battery.

WARNING: Ensure all personnel are standing at least 15 metres away from module.
