Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement16 · Steering
16 · Steering & suspension

Power steering pump drive belt

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Adjustments › Power steering pump drive belt
SteeringPower steering pump drive belt

POWER STEERING PUMP DRIVE BELT

Service repair no - 57.20.01

Check

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Check condition of drive belt, renew a drive belt that shows signs of wear and splitting.

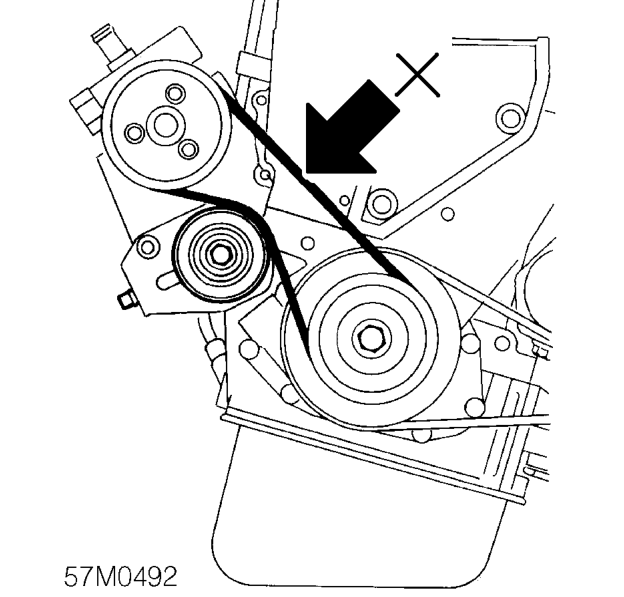

Power steering pump drive belt – Check condition of drive belt, renew a drive belt that shows signs of wear and splitting.
  1. Apply a force of 98 Nm, 10 kg to the steering drive belt at position ’X’ and measure the deflection between the crankshaft pulley and power steering pump pulley. Drive belt deflection: Used belt = 7.5 - 8.5 mm New belt = 5.5 - 8.5 mm

Adjust

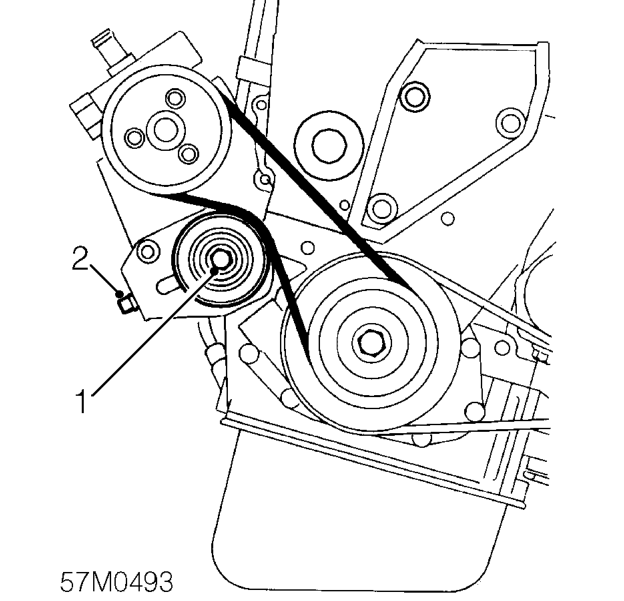

Power steering pump drive belt – Apply a force of 98 Nm, 10 kg to the steering drive belt at position ’X’ and measure the d
  1. Loosen drive belt tensioner pulley securing bolt.
  2. Increase drive belt tension by turning the tension adjusting bolt anti-clockwise.
  3. Tighten drive belt tensioner pulley securing bolt to 25 Nm.
  4. Recheck drive belt tension.
  5. Remove stand(s) and lower vehicle.
