Air conditioningCondenser – 1.4 and 1.6

CONDENSER – 1.4 AND 1.6

Service Repair No. 82.15.07

Remove

  1. Remove front bumper assembly, see BODY – Repairs.
  2. Recover refrigerant from air conditioning system, see Adjustments.

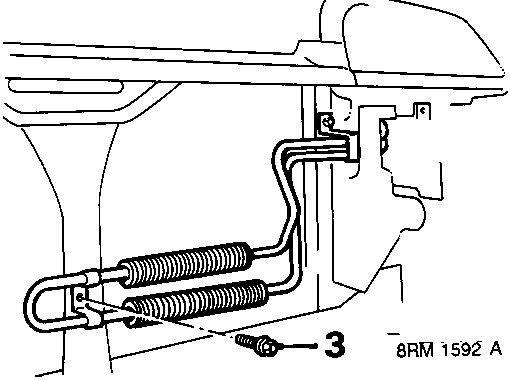

Diagram showing power steering oil cooler bracket bolted to bonnet catch plate, callout 3.
  1. Remove bolt securing power steering oil cooler bracket to bonnet catch plate.

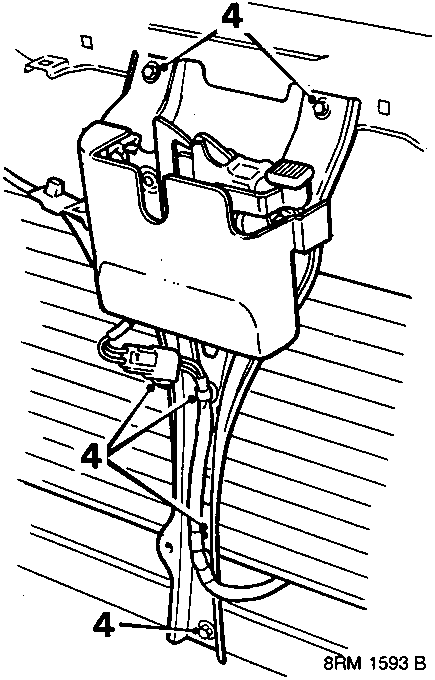

Diagram showing bonnet lock platform support with multiplug and clips, callouts 4.
  1. Disconnect multiplug, release 2 clips and position bonnet alarm lead aside. Remove 3 bolts to release bonnet lock platform support and position aside.

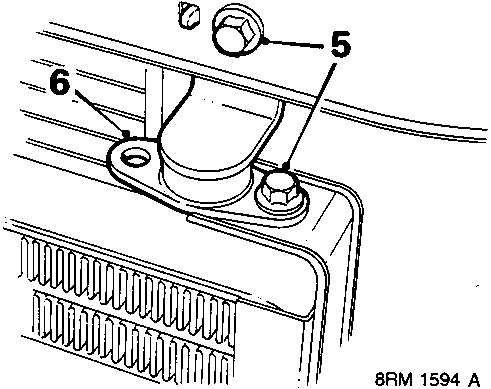

Diagram showing condenser top mounting bolts, callouts 5 and 6.
  1. Remove 4 bolts securing condenser top mounting.
  2. Remove mountings.

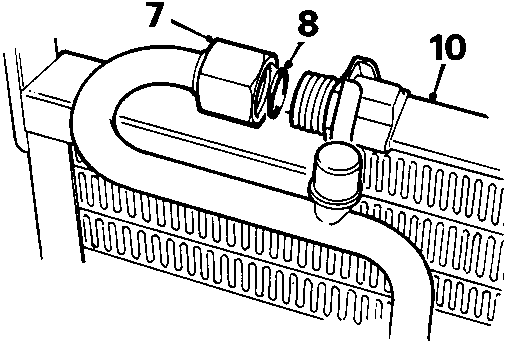

Diagram showing condenser pipe and discharge pipe connections, callouts 7, 8, and 10.

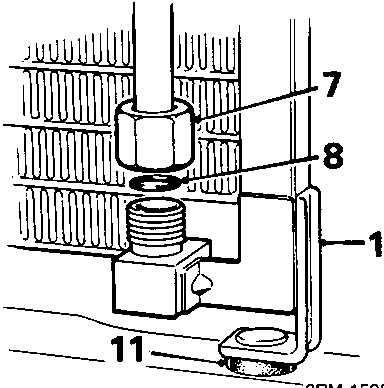

Diagram showing rubber insulators on condenser, callouts 7, 8, 10, and 11.
  1. Disconnect condenser pipe and discharge pipe from condenser.
  2. Remove 'O' rings from pipes.
  3. Cap open fittings immediately to keep moisture and dirt out of system.
  4. Remove condenser assembly.
  5. Remove rubber insulators from condenser.

Refit

  1. Fit rubber insulators to condenser.
  2. Position condenser assembly.
  3. Remove caps from condenser and pipes.
  4. Clean pipes and joints on condenser.
  5. Lubricate 'O' rings with refrigerant oil.
  6. Fit 'O' rings to pipes.
