Air conditioningRefit

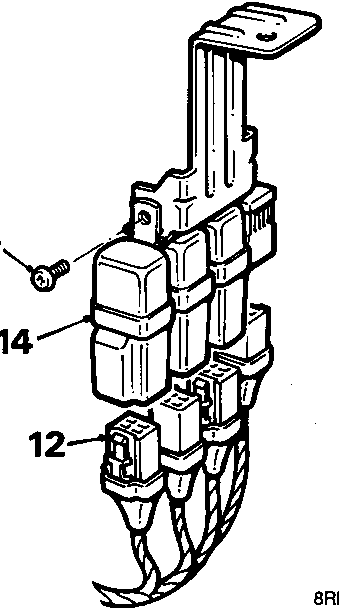

Diagram of relay bracket assembly with callout numbers 12, 13, and 14

8RM 1602 B

  1. Release multiplug from under rubber sheath.
  2. Remove screw securing the relay.
  3. Remove relay.

Refit

  1. Fit relay to bracket.
  2. Fit and tighten screw, relays to bracket.
  3. Connect multiplug under rubber sheath.
  4. Reposition relays and bracket assembly.
  5. Fit and tighten screw, bracket to body.
  6. Position air intake rubber hose.
  7. Fit air cleaner intake pipe.
  8. Connect pipe to air cleaner connection.
  9. Fit and tighten 2 bolts, intake pipe to bonnet platform.
  10. Connect header tank hose to air intake pipe.
  11. Fit and align battery tray, tighten bolts to 9 Nm.
  12. Align harness and brake fluid hose brackets to battery tray, tighten bolt to 9 Nm.
  13. Refit battery.

TRINARY PRESSURE SWITCH – 1.4/2.0 or DUAL PRESSURE SWITCH – 1.6

Service Repair No. 82.20.19

Remove

  1. Remove front bumper, see BODY – Repairs.
  2. Recover refrigerant from air conditioning system, see Adjustments.

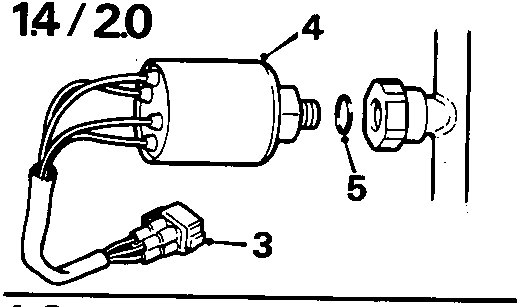

Diagram of trinary/dual pressure switch with callout numbers 3, 4, and 5

8RM 1603 A

  1. Release multiplug from switch.
  2. Remove switch.
  3. Remove 'O' ring from switch.

Refit

  1. Clean switch and mating face.
  2. Lubricate 'O' ring with refrigerant oil.
  3. Fit 'O' ring to switch.
  4. Fit and tighten trinary pressure switch and dual pressure switch to 12 Nm.
  5. Connect multiplug.
  6. Fit front bumper, see BODY – Repairs.
  7. Recharge air conditioning system, see Adjustments.
