Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual24 · Air conditioning
24 · Heating & A/C

Condenser fan motor – 2.0 (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Air conditioningCondenser fan motor – 2.0 · page 2 of 2

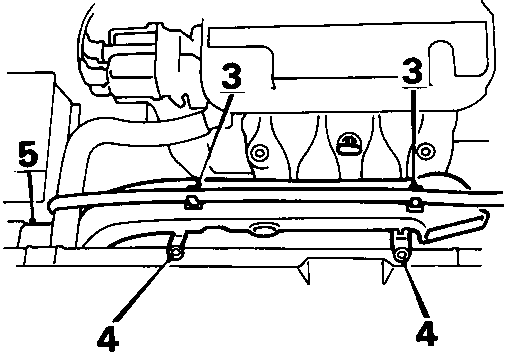

Diagram showing header tank hose, air cleaner intake pipe and bonnet platform with callout numbers 3, 4, and 5.
  1. Release header tank hose from air cleaner intake pipe.
  2. Remove 2 bolts, air cleaner intake pipe to bonnet platform.
  3. Release pipe from air cleaner connection, remove pipe.

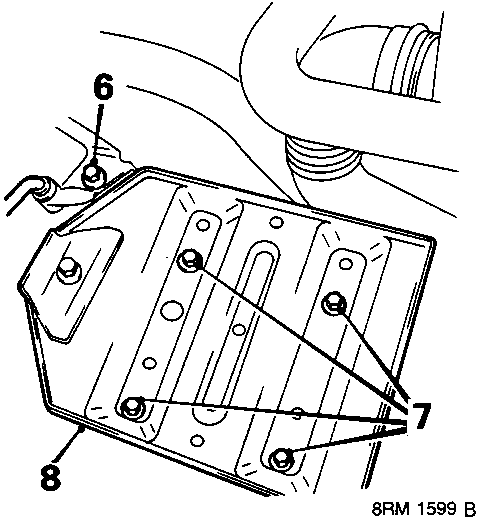

Diagram showing brake fluid hose harness brackets and battery tray with callout numbers 6, 7, and 8.
  1. Remove bolt securing brake fluid hose and harness brackets to battery tray.
  2. Remove 4 bolts securing battery tray.
  3. Remove battery tray.

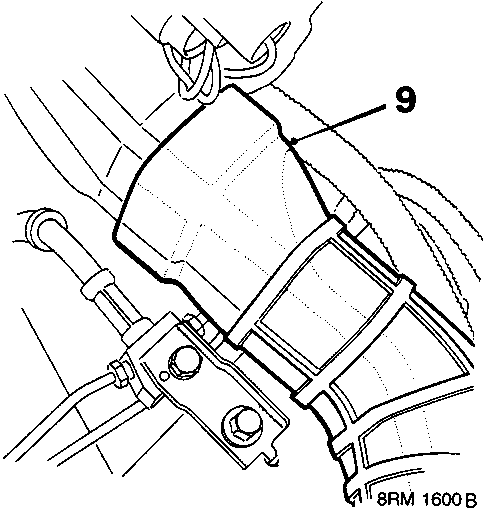

Diagram showing rubber air cleaner intake hose with callout number 9.
  1. Move rubber air cleaner intake hose aside.

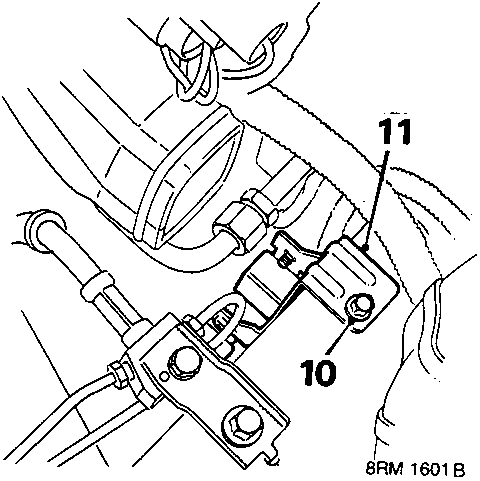

Diagram showing relay bracket assembly with callout numbers 10 and 11.
  1. Remove bolt, relay bracket to body.
  2. Manoeuvre relays and bracket assembly to a position for access to relay securing screws.
