Air conditioningCondenser fan motor – 1.4

CONDENSER FAN MOTOR – 1.4

Service Repair No. 82.15.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove underbelly panel, see BODY – Repairs.

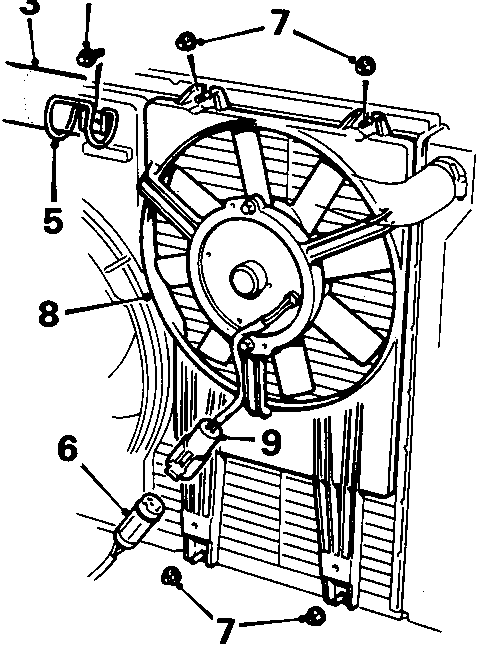

Diagram showing condenser fan motor assembly with callout numbers 3 through 9
  1. Release top hose from support clip and move aside.
  2. Remove 2 screws, top hose clip to fan cowl.
  3. Remove top hose clip.
  4. Disconnect fan multiplug.
  5. Remove 4 fan cowl securing nuts.
  6. Remove fan and cowl assembly.
  7. Release multiplug from fan cowl.

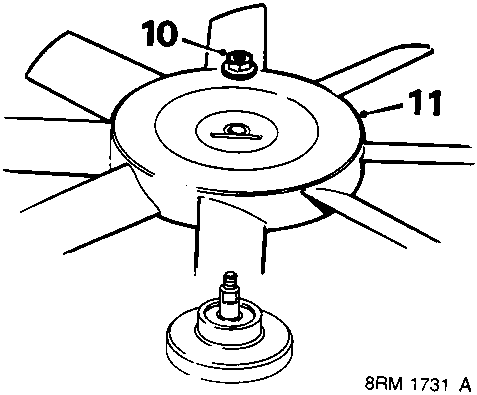

Diagram showing fan and motor assembly with callout numbers 10 and 11
  1. Remove nut securing fan to motor.
  2. Remove fan from motor.

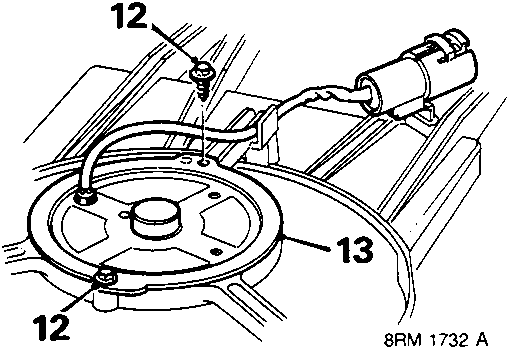

Diagram showing motor and cowl assembly with callout number 12 and 13
  1. Remove 2 screws, motor to cowl.
  2. Remove motor from cowl.

Refit

  1. Refit motor to cowl.
  2. Fit and tighten 2 screws motor to cowl.
  3. Fit fan to motor.
  4. Fit and tighten nut, fan to motor
  5. Secure multiplug to fan cowl.
  6. Fit fan and cowl assembly.
  7. Align assembly to radiator studs.
  8. Fit and tighten 4 nuts, cowl to radiator.
  9. Connect multiplug.
  10. Fit top hose clip to fan cowl.
  11. Fit and tighten clip screws.
  12. Connect top hose to cylinder head and tighten clip.
  13. Fit underbelly panel, see BODY – Repairs.

CONDENSER FAN MOTOR – 1.6

Service Repair No. 82.15.01

Remove

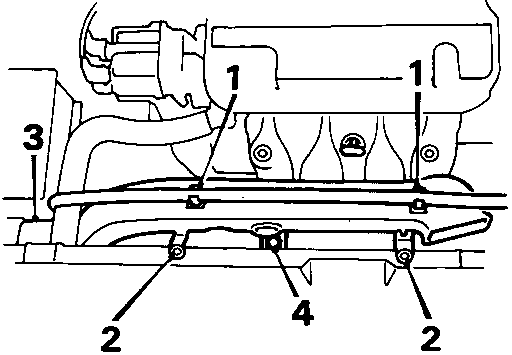

Diagram showing air cleaner intake pipe area with callout numbers 1 through 4
  1. Release header tank hose from air cleaner intake pipe.
  2. Remove 2 bolts, air cleaner intake pipe to bonnet platform.
  3. Release pipe from air cleaner connection, remove pipe.
  4. Remove bolt, air conditioning pipe to bonnet platform.
