Air conditioningRemove

Service Repair No. 82.10.03

Remove

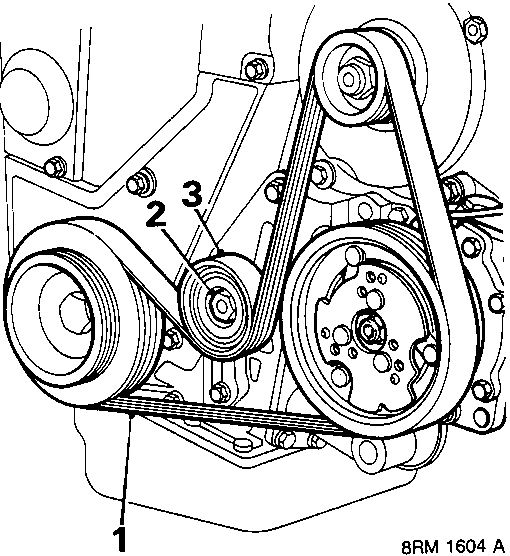

Diagram of alternator and air conditioner compressor drive belt with numbered callouts 1, 2, and 3
  1. Remove alternator/air conditioner compressor drive belt, see MAINTENANCE.
  2. Remove nut securing adjuster pulley.
  3. Remove adjuster pulley.

Refit

  1. Clean pulley and mating face.
  2. Fit pulley to mounting bracket.
  3. Fit but do not tighten pulley nut.
  4. Fit and adjust alternator/air conditioner compressor drive belt, see MAINTENANCE.

DRIVE BELT ADJUSTER PULLEY – 1.6

Service Repair No. 82.10.03

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove underbelly panel, see BODY – Repairs.

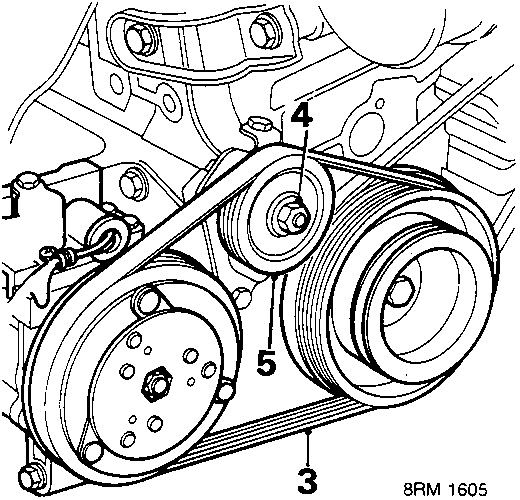

Diagram of engine drive belts showing adjuster pulley with numbered callouts 3, 4, and 5
  1. Remove air conditioner compressor drive belt, see MAINTENANCE.
  2. Remove nut, adjuster pulley to mounting bracket.
  3. Remove pulley.

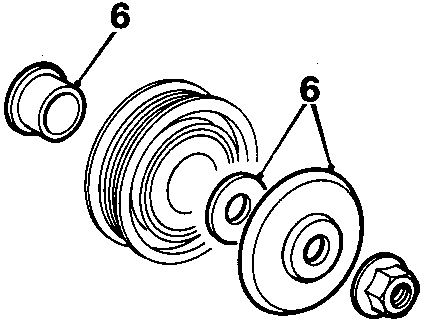

Exploded view of adjuster pulley assembly showing spacer and washers with callout 6
  1. Collect spacer and 2 washers.

Refit

  1. Clean pulley and mating face.
  2. Clean washers and spacer.
  3. Fit spacer to pulley.
  4. Fit pulley.
  5. Fit pulley washers.
  6. Fit but do not tighten pulley nut.
  7. Fit and adjust air conditioner compressor drive belt, see MAINTENANCE.
  8. Fit and adjust power steering drive belt, see MAINTENANCE.
  9. Fit underbelly panel, see BODY – Repairs.
  10. Remove stand(s) and lower vehicle.
